Portable Color Reader(HP-2132) Manufacturer

Item Code: Features:

CE approved
Neutral packing

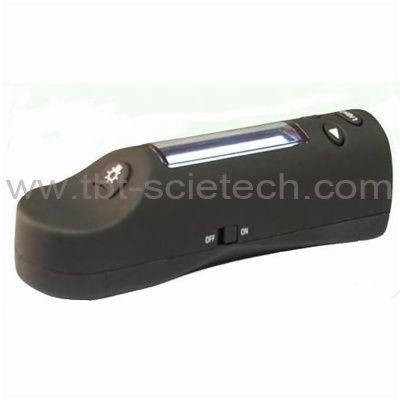

HP-2132 Portable Color Reader/Color Difference Meter

I. Technical Features：

1.Easy operation make you use it easily.

2.Widely applied to quality control of plastic and printing industries’.

3.Display directly color difference by △E*ab、△L*a*b、CIE_L*a*b、CIE_L*C*h.

4.Standard deviation within△E*ab0.2(test condition：choose average values by 12pcs white tabula).

5.It can be connected with computer to do the inspection by software with USB expansion interface.

II. Skills Indications

test accuracy	Within 0.2 △E*a b
Display	△E*ab、CIE_Lab、△L,△a,△b、CIE_Lch
Test range	L:0—100 a：-128--127 b：-128--127
Test time	About 3 seconds
Test Interval	2 seconds
Test aperture	￠8mm
Automatic shutdown	Automatic shutdown after 5 minutes waiting
Light source	C light source
Sensor	Correct sillicon photodiode carrays
Power	DC／5V(1.5A).2pcs 1.5V(AAA)batteries
Size	1715048.8mm
Weight	203.6g(Exclusive battery)
Ope rated temperature scope	0-40 ℃132-104'f);lower than 85% relative humidity
Standard accessories	1 pc nlanual/softwbag/9V battery/5v external power supply／USB connecting cable／CD
Application	Measure any color Of smooth surface
