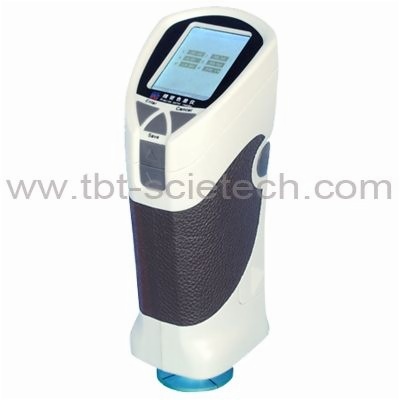

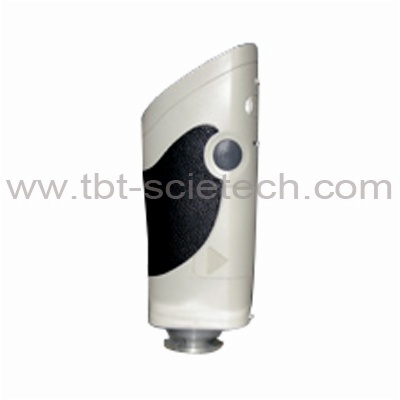

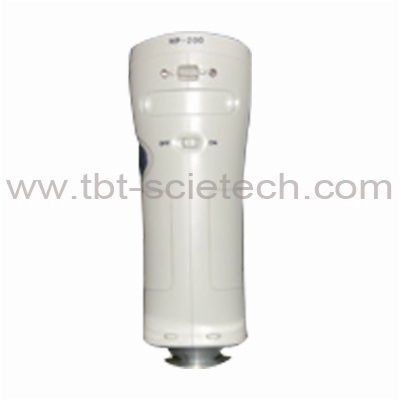

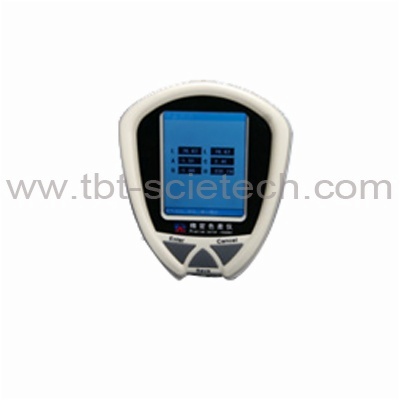

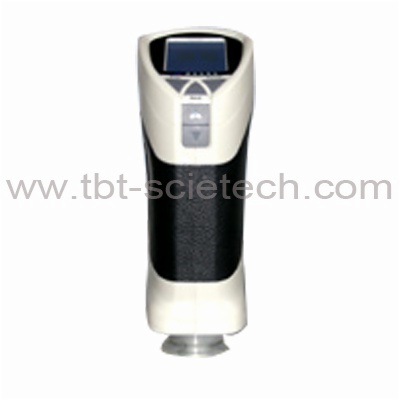

HP-200 Precise Color Reader/Color Difference Meter
I. Application:
The instrument is mainly applied to plastic、painting、design、plating、costume、Printing and dyeing industries.It can do the Color analysis and Color controlling.
II. Product Feature:
1.The 2.4"Width colorful screen and portable design make you feel comfortable.
2.3 kinds of light sources for your selection ,SCI and SCE mode switch and metamerism analysis meet your test needs in different working status.
3.Tolerance setting,humanizational auto-judge color difference values and color deviation make you judge the color easily even you don't have any professional knowledge in color.
4.Professional color analysis software makes you do the color data analysis and color difference diagrammatic outputting.
5.The optical mini printer fulfil the output of data.
III .Software features:
The interface is concise and entire, fit for color analysis and Color difference data output. Including:
1.Standard values data bank.
2.Single and repetitious test mode.
3.Color simulation
4.Color space diagrammatic sheet.
5.Color difference curve and color test report.
IV .Technical standards:
Repeat accuracy
|
0.08 (Test the standard white tabula for 30 times to get the average value.)
|
Lighting / inspecting system
|
8 / d (8°Falloff / diffuse reflection)
SCI (include Flat Mirror Light) /
SCE (eliminate Flat Mirror Light)
|
Lighting / inspecting system
|
8 / d (8°Falloff / diffuse reflection)
SCI (include Flat Mirror Light) /
SCE (eliminate Flat Mirror Light)
|
Light source
|
White light source
|
Inspection angle
|
10°Angle of view in CIE
|
Inspection conditions
|
D65、D50、F11
|
Rectification
|
White board rectification,
black board rectification
|
Storage
|
13 groups of standard samples, and it can keep 31 groups of sample values
under every standard sample.
|
Display
|
L*a*b*、L*c*h* Chroma values and △E*ab △(L*a*b*)、△(L*C*H*)color difference values
|
Language
|
Chinese and English
|
Test Caliber
|
8mm
|
Power
|
4 pcs alkaline batteries or nickel batteries special adaptor (DC:5V)
|
Weight
|
550g
|
Shape size
|
77*86*210mm
|
