Stress-strain Controlled Shear Permeated Triaxial Test Apparatus Manufacturer

SLB – 1 Apparatus is a type of multifunction flexible triaxial test apparatus which can conduct iso-stress and iso-strain control when triaxial test. It also can conduct unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test as well as some other tests such as anisotropic consolidation, isotropic consolidation, backpressure saturation, stress path test and permeated test. Every unit of the apparatus is controlled by microprocessor and it not only can be operated independently, but can conduct data exchange with computer and data acquisition processing as well. The data exchange through the computer communication. The computer gives the order to each controller and each controller can feed back the test data to the computer. The computer will draw up real time curve according to the test data and store the data, print out the curve and testing report. The computer adopts Delphi method language and the microprocessor adopts assembly language.

Product Model		SLB – 1
Axial load capacity		0 – 20kN Accuracy: ±1%(10% - 95%FS)
Control method	iso-strain control	0.002 – 4mm/min. ±10%
	iso-stress control	3kN – 30kN Accuracy: ±1%
Specimen		Ø61.8 x 125mm, Ø39.1 x 80mm
Confining pressure		0 – 1.99MPa
Confining pressure	Accuracy	±0.5%FS
	Setting value	0.01 – 1.95MPa
Back pressure		0 – 0.99MPa
Back pressure	Accuracy	±0.5%FS
	Setting value	0.01-0.95MPa a. Constant differential pressure controls permeability method b. Constant flow permeability method ( 0.1 – 2ml/s )
Volume deformation		0 – 800ml, digital display
Dimension	Main Unit	515 x 350 x 1220mm (L x W x H)
	Controller	980 x 450 x 900mm (L x W x H)
Weight		258kg

Any questions, please contact us.

Email: sales@tbt-scietech.com;toni_gu@tbt-scietech.com

Tel: 86-25-8472 1577/8472 1579/8472 1907

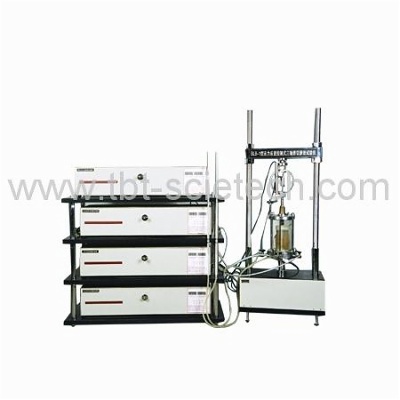

Stress-strain Controlled Shear Permeated Triaxial Test Apparatus SLB-1
