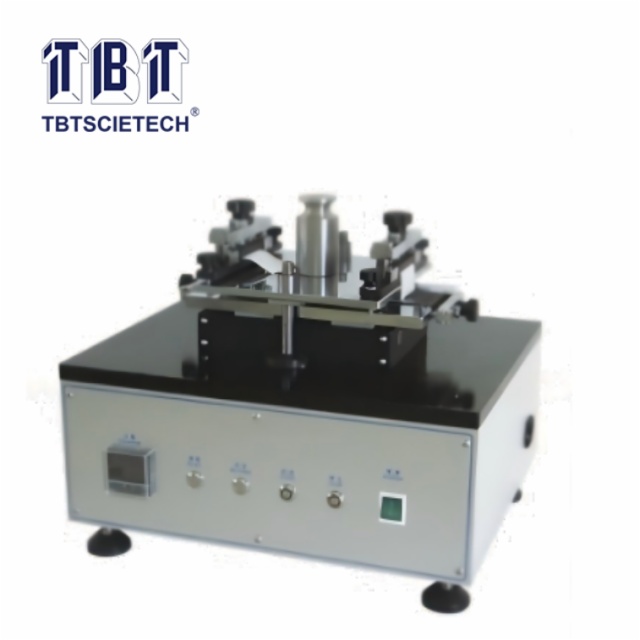

    Abrasion Resistance Test Apparatus for Geotextile TBT1250/TBT1250A

    Abrasion Resistance Test Apparatus for Geotextile
    Item Code:TBT1250/TBT1250A Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Used to determine the resistance of geotextiles and geotextiles-related products to abrasion by sand paper-sliding block method.

    Model No.

    TBT1250

    TBT1250A

    Effective abrasion area

    50mm×200mm

    75mm×200mm

    Reciprocating frequency

    90CPM

    10~115CPM

    Adjustable

    Reciprocating stroke

    25±1mm

    Load

    6±0.01Kg

    1Kg

    Counting range

    1~9999 cycles，Settable
