Chloride Ion Penetration Meter Manufacturer

TBT-RCP9 is designed referring to ASTM C1202 Standard Test Method for Electrical Indication of Concrete's Ability to Resist Chloride lon Penetration.

It adopts Rapid Chloride Permeability Test method to evaluate the impermeability of concrete, determining its resistance to chloride ion penetration by measuring the electric flux (total charge passed) of the specimens.

ASTM C1202

1.The advanced control system displays test data dynamically in real time, saves it automatically, and generates test reports with a single click;

2.The core circuit control boards feature high precision, good reliability, and high repeatability;

3.Key electrical automation components such as the power supply and controllers are imported, with their controllable range and accuracy for voltage and current exceeding relevant national and industrial standards;

4.The industrial-grade, large-size true color control screen offers simple operation, fast response time, and a user-friendly interface that is easy to learn and use;

5.The test fixtures, integrally molded from acrylic plates, feature high hardness, strength, and good durability;

6.The inner chamber of the fully automatic vacuum water saturator utilizes full-welding and stamping processes to ensure good airtightness, reaching 0.003 MPa (98% vacuum degree) within 3 minutes;

7.Power-failure recovery function, the system can continue the incomplete test after power is restored.

Voltage range	0 to 80V
Voltage accuracy	±0.1V
Voltage resolution	0.01V
Current range	0~10A
Current accuracy	±0.1mA
Current resolution	0.01mA
Temperature accuracy	±0.2℃
Temperature resolution	0.1℃
Test channels	1 to 9 channels
Main unit size	450x400x235mm
Main unit power supply	220V, 50Hz
Flux fixture electrode size	Φ90x1mm (Copper)
Flux fixture size (single cell)	150x150x50mm
Flux fixture solution chamber	Φ80x41mm
Effective volume	Φ295x320mm, Capacity 21 L
Vacuum saturation apparatus size	390x550x780mm
Vacuum saturation apparatus weight	39.5kg
Vacuum saturation apparatus power supply	220V, 50Hz

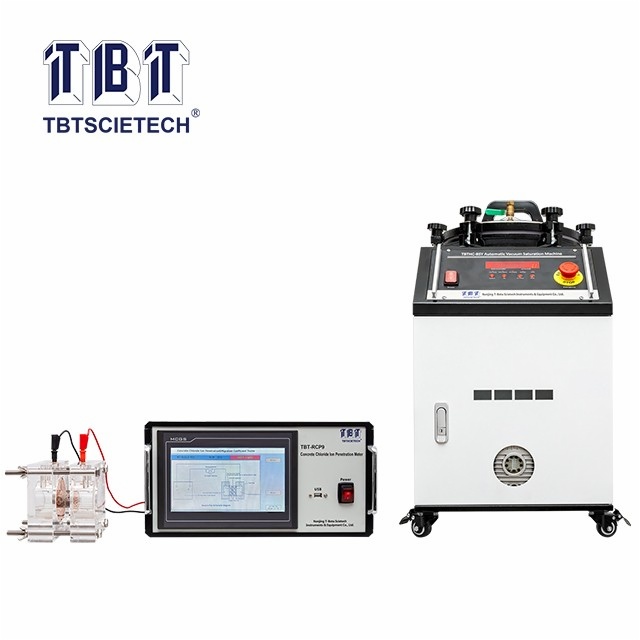

Chloride Ion Penetration Meter TBT-RCP9
