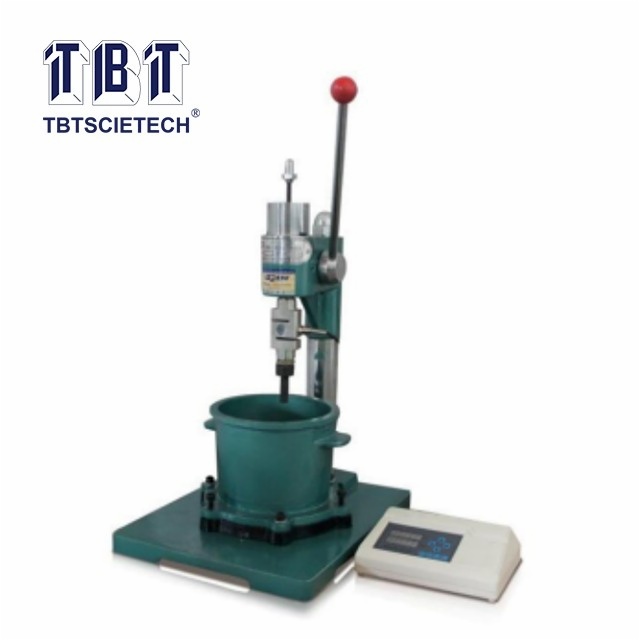

    Concrete Penetration Resistance Apparatus HG-1000

    Concrete Penetration Resistance Apparatus
    Item Code:HG-1000 Features:Utilizing the penetration resistance measurement method, the HG-1000 is designed to accurately determine the initial and final setting times of concrete.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Utilizing the penetration resistance measurement method, the HG-1000 is designed to accurately determine the initial and final setting times of concrete.



    Container(Top×Bottom×Depth)

    φ160mm×φ150mm×150mm

    Max. load capacity

    1200N

    Min division

    1N

    Error

    ±10N

    Max. penetrating depth

    25mm

    Speed

    2.5mm/s

    Bearing areas of needle

    100mm²; 50mm²; 20mm²

    Penetrating point(optional)

    >25points

    Display method

    Digital display

    Weight

    Approx. 50kg

    Power supply

    220V, 50Hz
