Freezing and Thawing Testing Machine Manufacturer

TBTTDR-16 is designed to evaluate the frost resistance and durability of concrete specimens under rapid water-immersion freezing and thawing cycles. By subjecting specimens to automated alternating periods of freezing and thawing in water, the system simulates severe winter weathering conditions in an accelerated laboratory environment. Equipped with an advanced control system, TBTTDR-16 ensures precise temperature monitoring and compliant cycle timing, providing reliable data for concrete service-life prediction.

ASTM C666

1. Compressor, heating part, power control part are imported parts, high quality, high performance;

2. MAX-MIN temperature of each point is not more than ± 2℃ in the cabinet when full load running;

3. Automatic control of instrument, real-time dynamic display of data curve, automatic storage of test data, and automatic recovery of test when unexpected break;

4. Convenient installation, small occupation and low noise.

Condenser cooling mode	Air cooling
Specimen quantity	16 pcs can be customized
Specimen size	100×100×400mm
Specimen container size	120×120×500mm can be customized
Freezing and thawing circle	Around 2.5~4 hours while thawing time is no less than 1/4 of the whole circle
Sensor 1	Central temperature control 5~-18±2℃
Sensor 2	Liquid temperature control (High: 18~23℃ Low: -23~-18℃)
Sensor 3	Diagonal temperature control (Max-min temperature less than 2 ℃)
Sensor 4	Secondary protection temperature control 50 ℃~-30℃
Temperature recorder	Touch screen
Freezing and thawing cycle medium	-45℃ anti freezing liquid
Liquid level of freeze-thaw cycle medium	10~15 mm higher than test block
Refrigerating machine compressor	5HP
The heating power	4KW
Maximum operation power	5KW
Power supply	380V, 50Hz

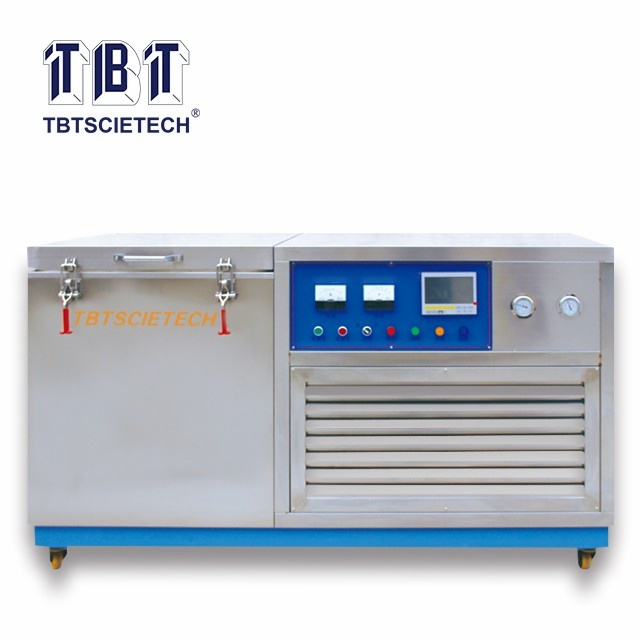

Freezing and Thawing Testing Machine TBTTDR-16
