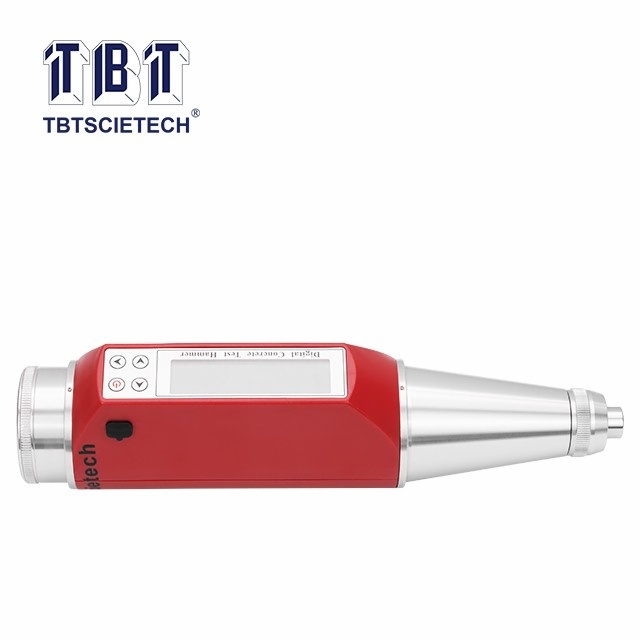

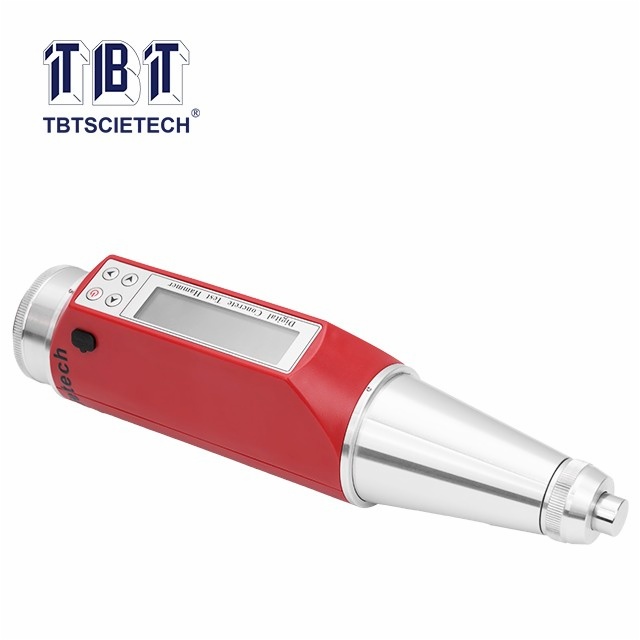

Digital Concrete Test Hammer TBT-TH225D

  • Digital Concrete Test Hammer
  • Digital Concrete Test Hammer
  • Digital Concrete Test Hammer
Item Code:TBT-TH225D Features:TBT-TH225D is digital concrete test hammer which combines data processor and test hammer in one unit.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBT-TH225D is digital concrete test hammer which combines data processor and test hammer in one unit.
It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks.
1.With big measuring range;
2.Device has data processor;
3.The compressive strength of concrete can be calculated out automatically;
4.Test data can be stored in memory and transferred to PC by USB cable;
5.Device can equip with Bluetooth printer    (optional configuration).

Result reading

Digital display

Display

OLED

Accuracy

±0.1

Bluetooth/USB

Bluetooth

Memory

1000

Measuring range

10~100N/mm²

Impact energy

2.207

Spring rigidity

785

Stroke

75

Rebound value

80

Repeatability

Less than ±1

Battery

Li-battery

Weight

Around 1.1KG
