Fully Automatic Concrete Carbonation Analysis System Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTCAVS-26T is the ideal solution for researching how air-entraining agents affect concrete air-void characteristics, exploring the relationships between void parameters and mix designs, and evaluating the correlation between the spacing factor and freeze-thaw durability indicators.

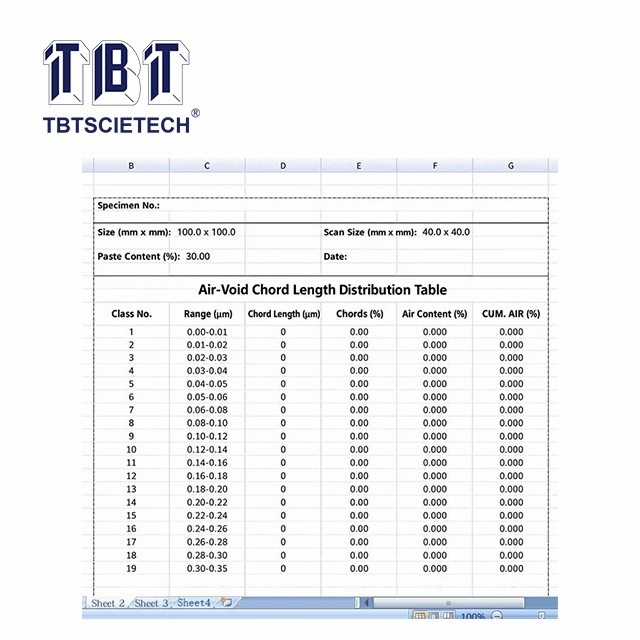

Featuring a highly intuitive and user-friendly acquisition software interface, the system delivers rapid and precise measurements of critical parameters: air content (vol%), average air-void chord length, average air-void radius, specific surface area, spacing factor, and total air-void count. To streamline your workflow, the system offers versatile data export options and seamlessly stores analytical charts, high-resolution photos, and other data formats.

Microscope Resolution	≤ 2μm
Microscope Magnification	100–200×
Microscope Illumination	Large-hooded, Condensing Diffuse Reflection Type
Movable Base Travel Accuracy	< 2μm
Chord Length Measurement Range	≥ 0.01mm
Power supply	220V, 50Hz

Fully Automatic Concrete Carbonation Analysis System TBTCAVS-26T
