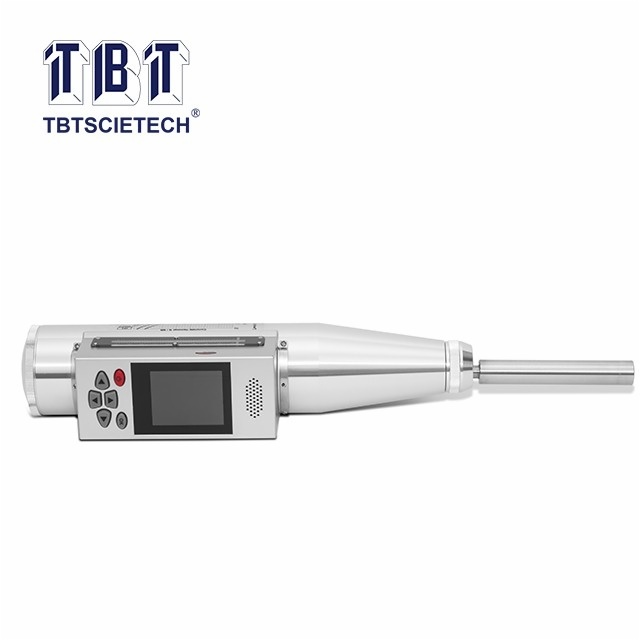

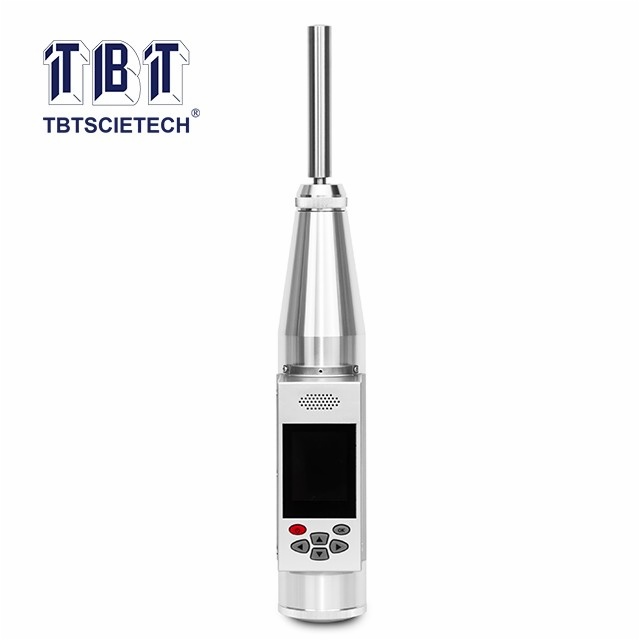

Digital Display Concrete Test Hammer TBT-TH02W

Item Code:TBT-TH02W Features:
  • Description
  • Main Specifications
  • Accessories

1. LCD large screen, high-resolution 160 * 160 (market products for the 160 * 128)

2. Low-power 2, 5# batteries (market products for the 6, 5# batteries)

3. Sweet voice report numbers function to improve the efficiency of testing staff. (Market products have no voice function)

4. Using USB communication interface, then quickly export the computer component data (market products for the RS232 interface)

5. Easy to operate, the software set the upper and lower rebound values, the outliers can be automatically removed.

6. Test hammer using imported parts, mechanical parts machining high precision



Measuring strength ranges

10~60Mpa

Impact energy

2.207J

Strike hammer stroke

75 mm

The consistency of the sample displayed value

≤± 1 (difference value between digital sampling

output value and the pointer readings)

Measurement range

From 10 to 70 N/mm2

The rebound values calibrated on steel anvil

80±2

Power

1.5V AA alkaline batteries

Power consumption approx.

Sampling case ≤50mA (average current)

Storage

80000 testing result



































Any questions, please contact us.

Email: sales@tbt-scietech.com;toni_gu@tbt-scietech.com

Tel: 86-25-8472 1577/8472 1579/8472 1907
