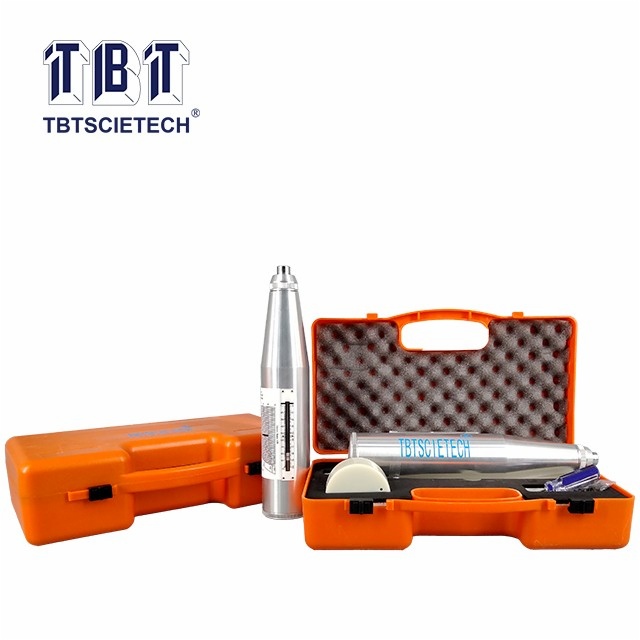

Concrete Test Hammer Manufacturer

TBT-TH01 is designed to make non-destructive test of concrete structures, it gives an immediate indication of the compressive strength of concrete.

1.Dustproof sealing ring for cap & rear cover

2.Aluminum material two-part rings;

3.Chromate surface treatment guide disk;

4.Better angle degree for stability pawl;

5.Both ends of spring adopts widen design.

Test range	10~70Mpa
Standard impact energy	2.207Nm
Stroke of rebound hammer	75mm
Friction of pointer slider	0.5N~0.8N
Sphere radius of rebound pole SR	25mm±1mm
Average rebound value on steel anvil Rm	80±2
Size	Φ54*278mm
