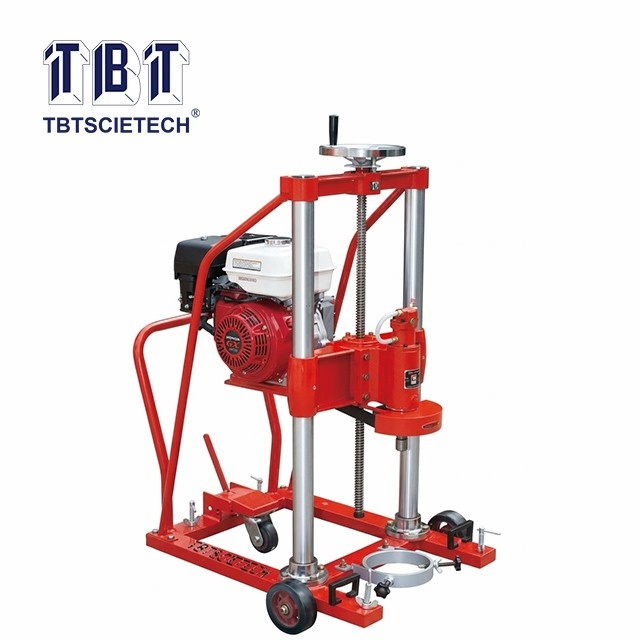

    Core Drilling Machine TBTCDM-20

    Core Drilling Machine
    Item Code:TBTCDM-20 Features:TBTCDM-20 is a gasoline-driven core drilling machine designed for heavy-duty coring and drilling tasks on asphalt or cement concrete surfaces.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBTCDM-20 is a gasoline-driven core drilling machine designed for heavy-duty coring and drilling tasks on asphalt or cement concrete surfaces. Delivering maximum mobility and efficiency, it is the ideal solution for quality testing and pavement drilling in highways, airport runways, and major construction projects.

    1.Equipped with a reliable Honda 5.5HP gasoline engine, perfect for remote construction sites without electricity access;
    2.Features a twin-column vertical guide frame, a screw-feed handwheel, and a mobile chassis with wheels, ensuring effortless operation and highly precise positioning.

    Maximum hole diameter

    Ф200

    Acceptable core bit

    50mm/70mm/100mm/150mm/200mm

    Maximum depth of drilling core

    700mm

    Motor power

    4.1kW

    Horsepower

    5.5HP

    Speed

    1100~1500 RPM

    Weight

    Approx. 60kg
