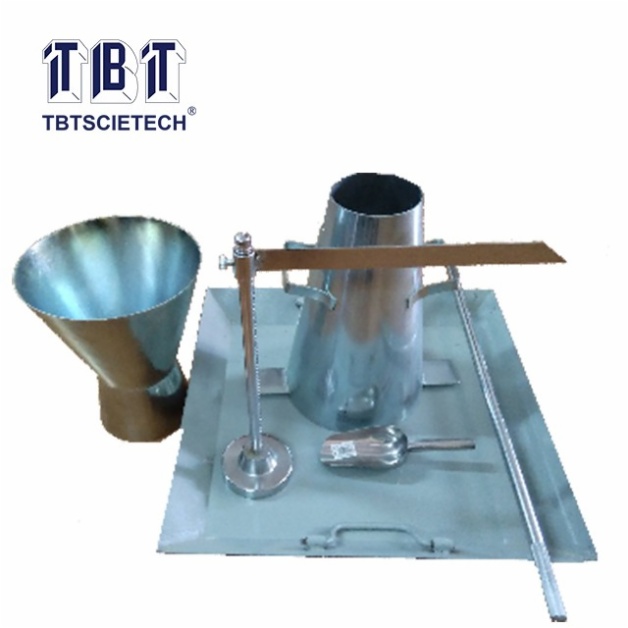

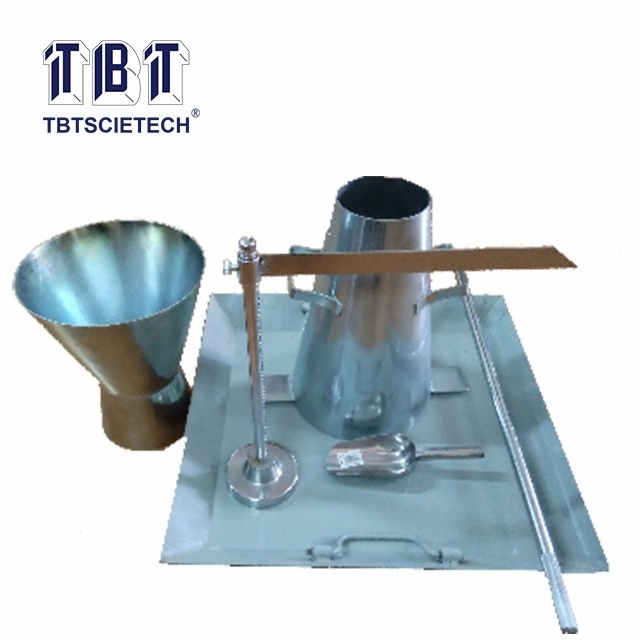

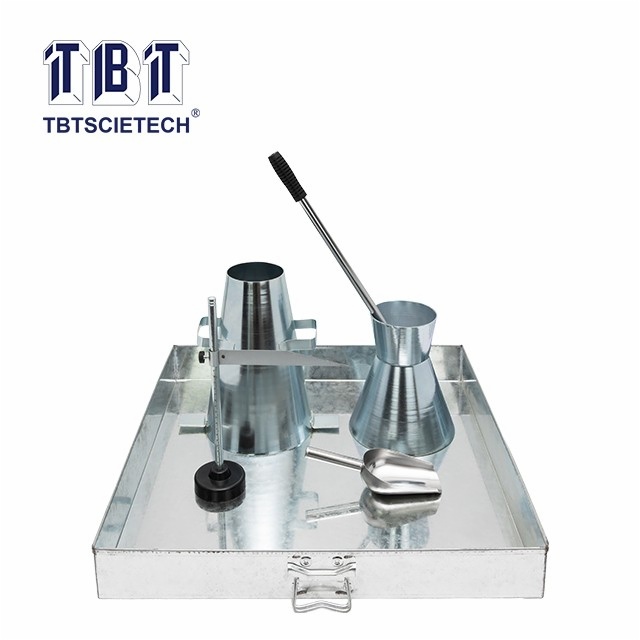

    Concrete Slump Testing Apparatus TBTSCT-1

    Concrete Slump Testing Apparatus
    Item Code:TBTSCT-1 Features:TBTSCT-1 is used to measure the consistency and workability of fresh concrete, and indirectly, the water/cement ratio of the concrete mix.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBTSCT-1 is used to measure the consistency and workability of fresh concrete, and indirectly, the water/cement ratio of the concrete mix.

    All cones are seamless and robust. Cones only and components are also available.

    Steel ruler

    300mm long

    Metal base plate size

    460*460*40mm

    Funnel upper diameter

    Ф200mm

    Middle diameter

    Ф 100mm

    Bottom diameter

    Ф130mm

    Height

    240mm

    Slump upper diameter

    Ф100mm

    Bottom diameter

    Ф200mm

    Height

    300mm
