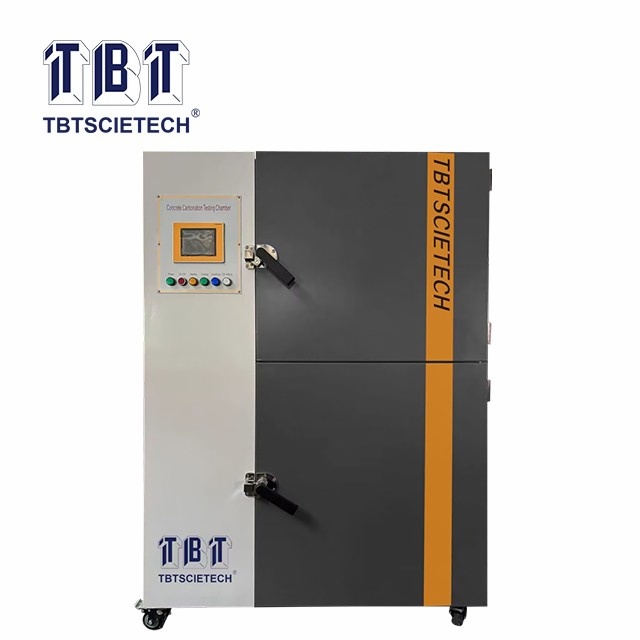

Concrete Carbonization Testing Cabinet TBTTH-B

Item Code:TBTTH-B Features:TBTTH-B is designed for evaluating the carbonation resistance and depth of concrete specimens, this device accelerates natural atmospheric aging in a controlled laboratory setting. It safely and precisely manages carbon dioxide concentrations of up to 20% or less to measure how deeply CO2 penetrates the concrete matrix over time.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBTTH-B is designed for evaluating the carbonation resistance and depth of concrete specimens, this device accelerates natural atmospheric aging in a controlled laboratory setting. It safely and precisely manages carbon dioxide concentrations of up to 20% or less to measure how deeply CO2 penetrates the concrete matrix over time. TBTTH-B consists of a heavy-duty test cabinet and a highly sophisticated environmental control system. By delivering synchronous, reliable management of temperature, relative humidity, and CO2 levels, it provides the stable testing environment necessary to achieve consistent and compliant test results.

1.The outer box is made of cold-rolled steel plate, the inner liner is made of high-quality stainless steel plate, the shelves are made of stainless steel, with good moisturizing, sealing and corrosion resistance;
2.Large volume for 24pcs 100*100*400mm specimen;
3.Touch screen controller for easy operation.

Chamber size

750×540×1380mm

Specimen size and quantity

100*100*400mm, 24pcs; 4 layers, each layer for 6pcs

Temperature

15℃~30℃ (adjustable), ±1℃

Humidity

50%~90% (adjustable), 3%

Carbon dioxide concentration

0%~20%, ±1%

Heating power

1kW

Cooling power

230W

Humidification power

50W

Size

1240x775x1745mm

Electricity

220V, 50Hz
