The test is performed through applying a voltage difference between the ends of a concrete specimen, one end is the negative and is immersed in a sodium chloride solution, the other is the positive and is in a sodium hydroxide solution. Testing procedure to ASTM While keeping 60 VDC difference between the specimen ends, current (Ampere) transmitted through the specimen is accurately measured over time calculating the total charge (Coulomb). starting from the measured total charge, the instrument provides qualitative indications of the chloride ion penetrability level (from High to Negligible).
The test fixture are designed suitable for both cubes and cylindrical concrete specimen. Equipped with corrosion-resistant electrodes, the tester can be used for long time.
The automatic acquisition and control system makes the test results accurate.
Reference Standard:
GB/T50082-2009, ASTM C1202
Specification:
Test channel:
|
6 channels
|
Output voltage accuracy:
|
60±0.1V
|
Current measurement accuracy:
|
0.5 mA
|
LCD screen size:
|
Touching screen 10 inches
|
Data storage:
|
8GU disk
|
Data format:
|
Excel file
|
Dimensions:
|
355×365×160(mm)
|
With functions:
|
|
Instantaneous short circuit protection, restart automatically
|
The test can be continued after power blackoff
|
Fixture material: Imported plexiglass
|

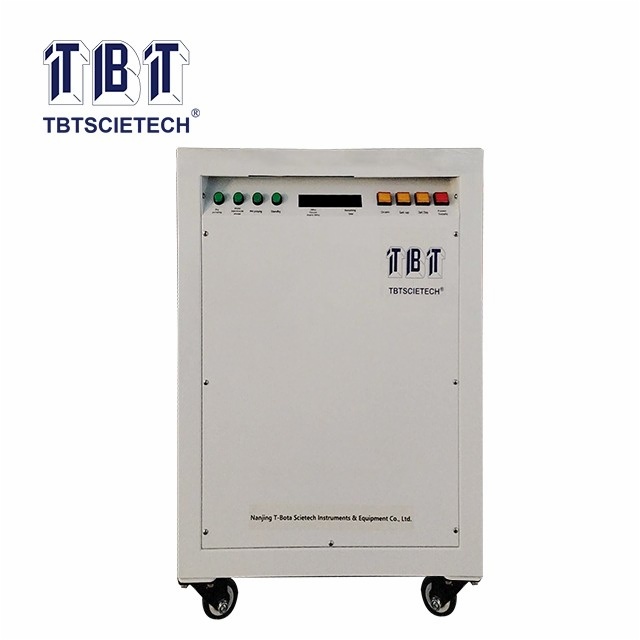

Automatic vacuum saturated water machine is configured:
Fully automatic intelligent vacuum saturation: all-in-one machine
Pressure transmitter range: 0~-0.101MPa
Time for vacuum to reach -0.098MPa: <4 min
The non- starting time for vacuum pump reduce pressure from -0.098MPa to -0.095MPa: ≥ 2 hrs
The base is with universal wheels lockable.
Dimensions: 600×400×900(mm)
Standard configuration:
1. Test Main unit .......................................................................................1 set
2. Intelligent concrete vacuum saturation machine .....................................1 set
3. Plexiglass test fixture for each channel ...................................................6 sets
4. U disk for data interpretation software .....................................................1 set
5. 8GU disk.................................................................................................. 1 pc
