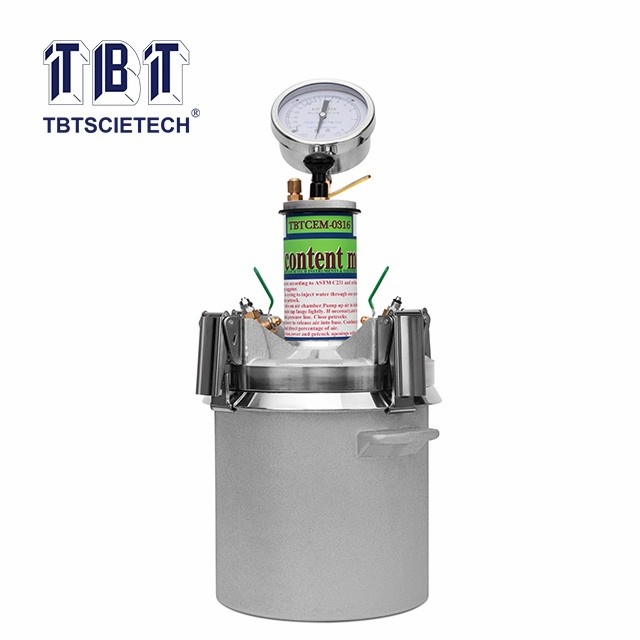

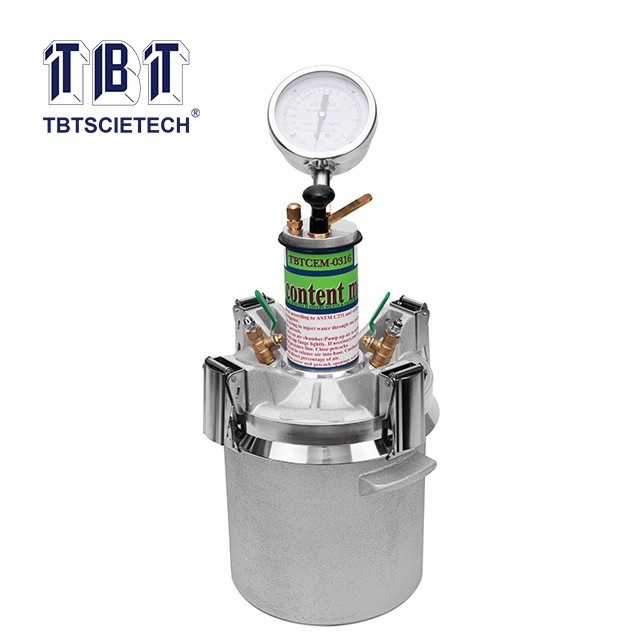

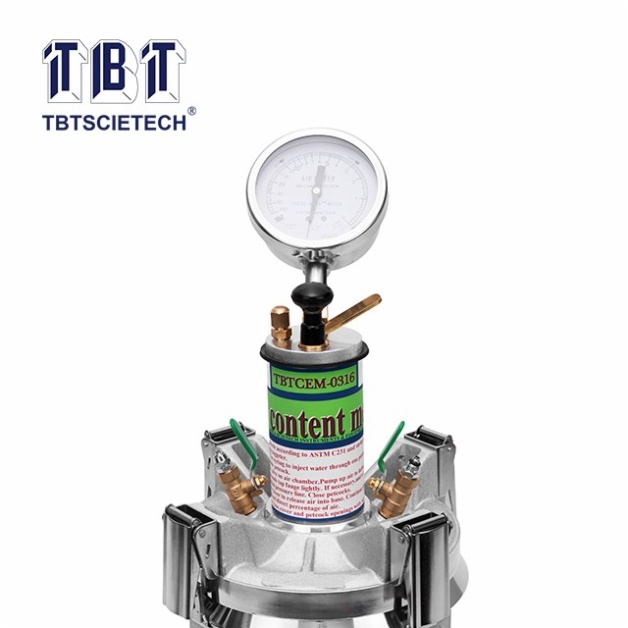

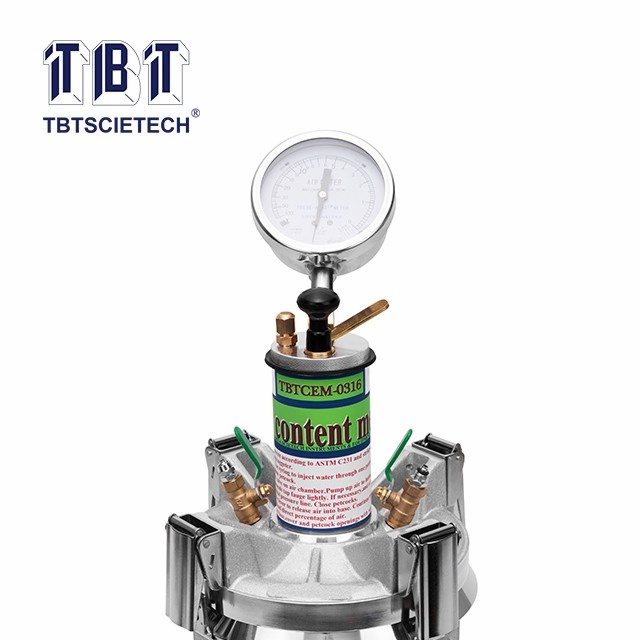

Concrete Air Entrainment Meter Manufacturer

TBTCEM-0316 adopts technology of US brand--Forney.

It is for the determination of air content of compacted fresh concrete.

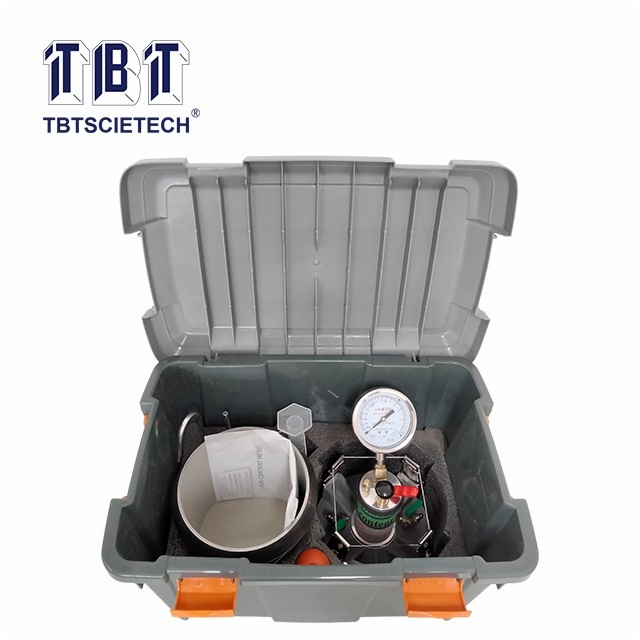

Each apparatus is supplied complete with a calibrating cylinder, pressure gauge, funnel, trowel and tamping bar.

ASTM C231

1. Fast test-no need to draw a curve, read the measured value of gas content directly;

2. Fast gland clamping system;

3. Light weight, built-in manual pump is easy to carry;

4. Not affected by changes in atmospheric pressure;

5. Durable and compact structure, most suitable for high-frequency use at the construction site.

Volume	7L
Air content range	0-100%
Accuracy	0-5%: 0.1%, 6-10%: 0.15%, 11-100% 0.25%
Maximum aggregate particle size	≤40mm
Pressure gauge	Dustproof, waterproof, explosion-proof
Main unit material	Magnesium aluminum zinc copper durable alloy
Buckle	Push type
Weighs	Around 9Kg
