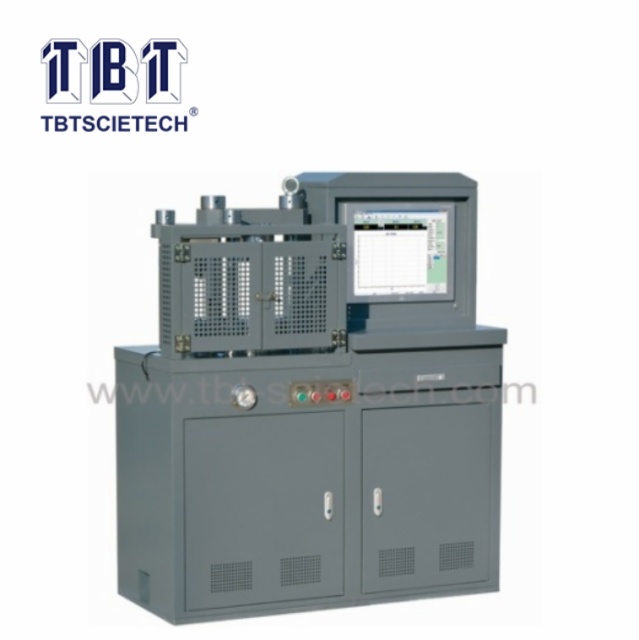

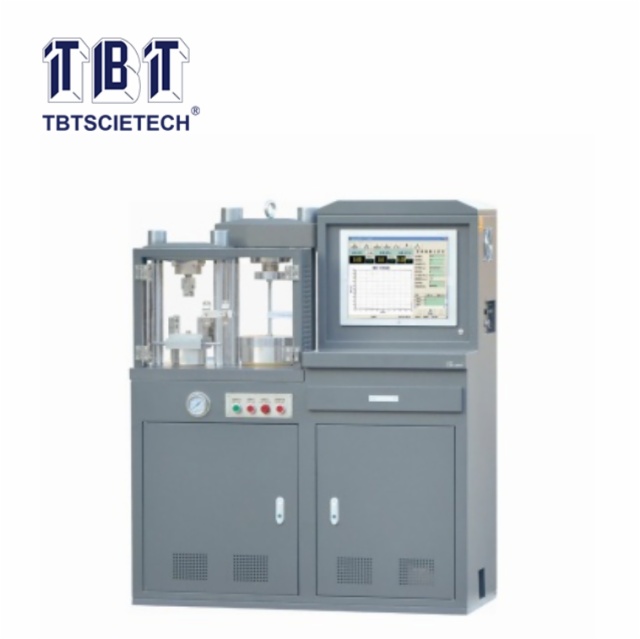

Compression & Flexure Testing Machine TBTCTM-300BSI

  • Compression & Flexure Testing Machine
  • Compression & Flexure Testing Machine
Item Code:TBTCTM-300BSI Features:
  • Description
  • Main Specifications
  • Accessories

This series of products hydraulically loaded, using electro-hydraulic servo technology for cement, concrete and other materials for compressive and flexural testing under nominal test force,can accordance with the appropriate standards and meet the standards set loading rate loading rate control targets, with load, time and test curve dynamic display and control functions in a timely manner and the maximum test force function.

This series of products on a computer equipped with monitoring software can automatically strike a compressive strength test data and automatically print out the complete test report and test curves.

Accuracy class

1

Capacity(compression)

300KN

Capacity(bending)

10KN

Compression space(bending)(mm)

180

Piston stroke(bending)(mm)

60

Compression space(compression)(mm)

180

Piston stroke(compression)(mm)

80

Size of compression plates(mm)

Φ120
