Computerized Electronic Universal Testing Machine TBTWDW-100HS

  • Computerized Electronic Universal Testing Machine
  • Computerized Electronic Universal Testing Machine
Item Code:TBTWDW-100HS Features:
  • Description
  • Main Specifications
  • Accessories

1. Product description:

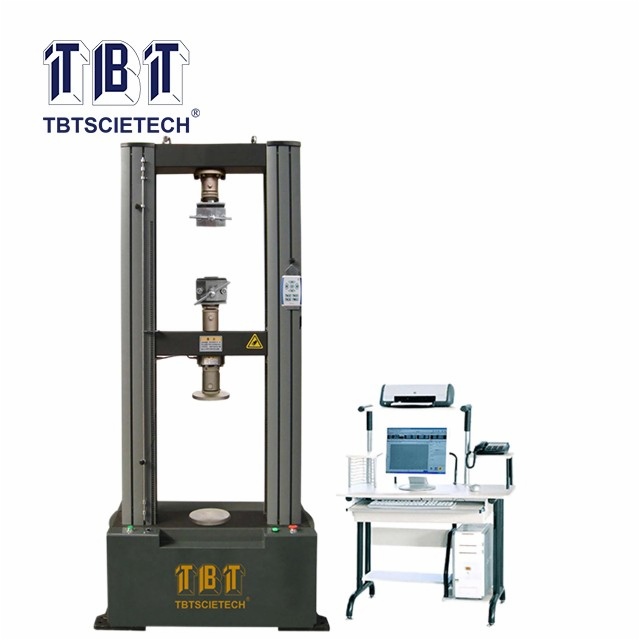

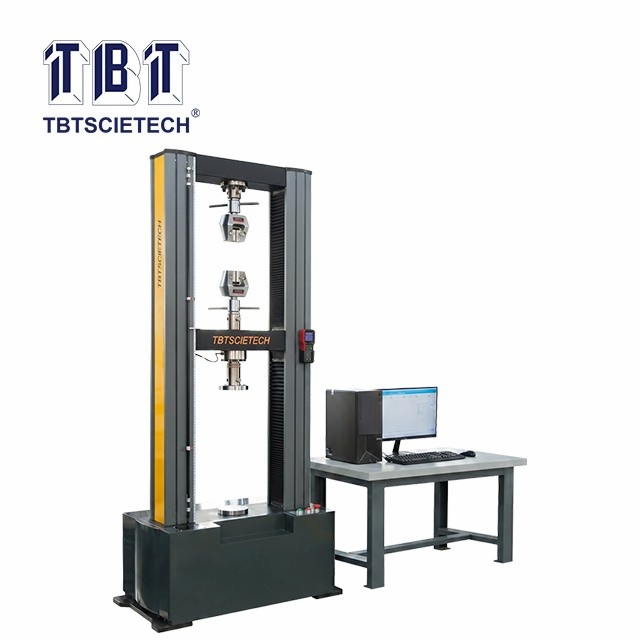

The machine adopts AC servo motor & driver to drive precision ball screw moving through decelerating system, adopts full digital controller as control system core controlling software & data processing by Windows system, makes wide range adjustment of testing speed to perform tensile, compression, bending, and flexural test for metal & non-metallic materials, the test process is stable & efficient with low noise. Thanks to the adopted international advanced control technology the test machine can achieve constant velocity deformation, displacement and test force controlling.

Parameters of test can be set through computer which automatically controls the test process, makes data acquisition, processing, analysis and display (the test data for metal materials includes: upper & lower yield points, tensile strength, fracture strength, elastic modulus, Elongation, δ0.2), etc., the test result is controlled precisely & accurately.

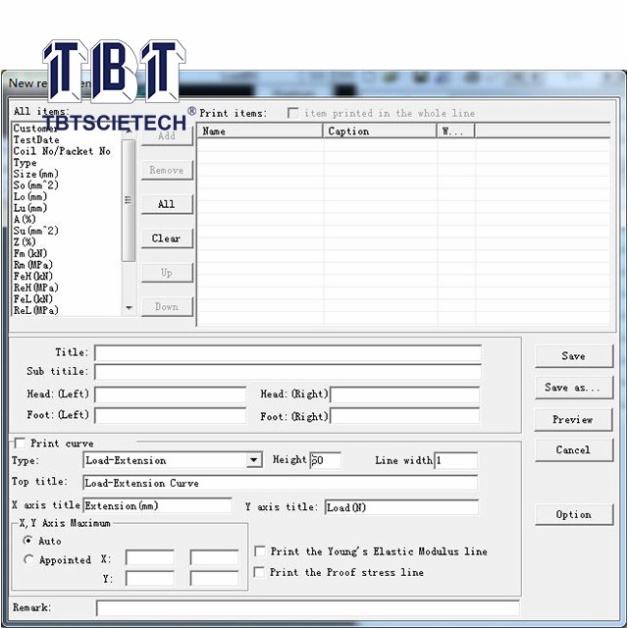

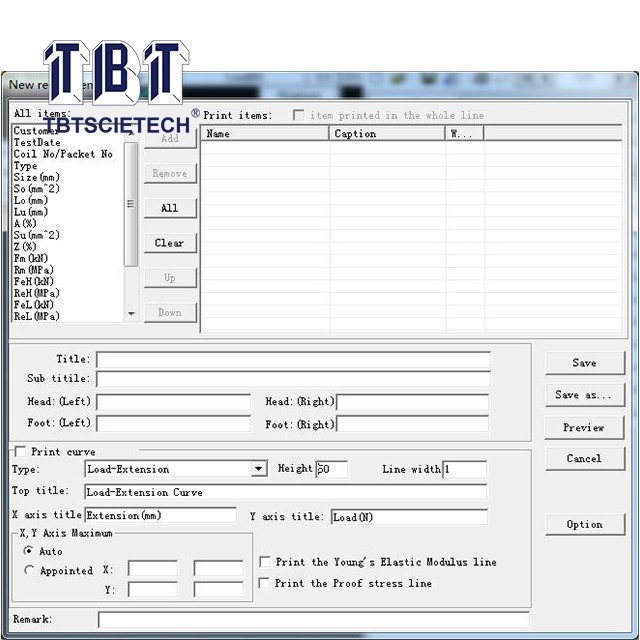

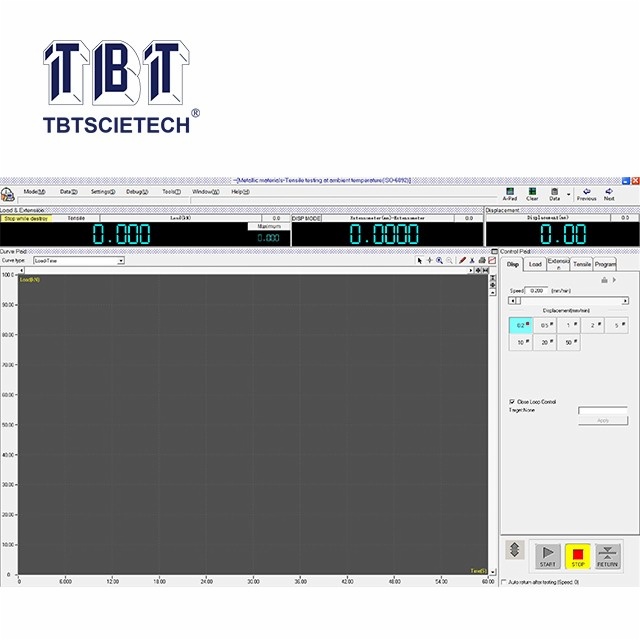

Equipped with dedicated software, according to national standards or user-provided standards, the machine can process test data, output or print required test curves or test reports, it is workable for user to select test curves of stress-strain, loading-time, loading-displacement, displacement-time or deformation-time to be displayed, enlarged, compared, and monitor the test process intelligently & conveniently.

The beam moving can be adjusted faster or slower when clamp on specimens, the switch can be operated easily.

The machine is with function of limit protection, overload or over current protection at any working position, reliable and safe.

With self-built test database, test data can be saved, queried and recalled at any time.

Benefit from highly automation of test process and installation of dozens of different fixtures, this machine can meet customer’s test requirements for various materials.

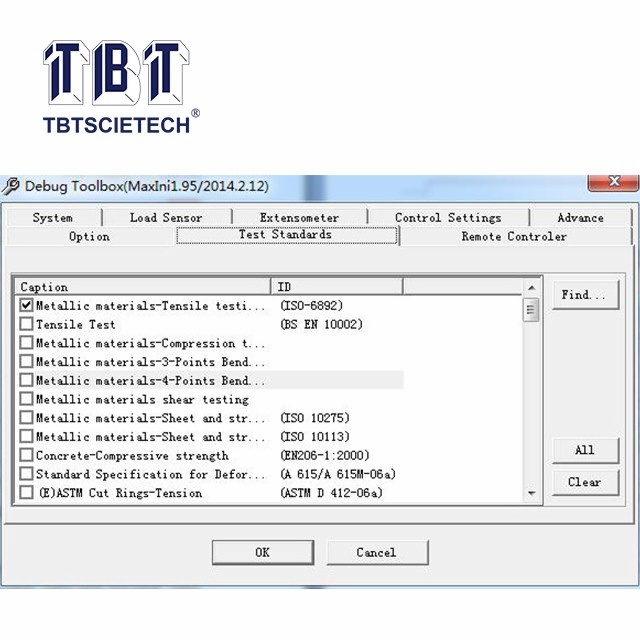

2. Standard:

ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,

GB/T228-2002, etc.

1. Technical Specification:



Max.loading capacity

100KN

Testing grade

 class 1

Loading measuring range

 0.4% -100%

Loading measuring accuracy

 better than ± 1%

Loading resolution

 1/300000

Displacement resolution

 0.01mm

Displacement measurement accuracy

 ± 0.5%

Test speed range

 0.01-500mm / min

Speed control accuracy

 ±1%(0.01~10mm/min); ±0.5%(10~500mm/min.)

Vertical tensile space

 600mm

Vertical Compression space

 600mm(can be customized)

Compression plate diameter

100mm(can be customized)

Test width

400mm(can be customized)

Fixture clamping

 Flat sample 0-7mm

Round sample Φ4-9mm

(Wedge-shaped)

Main unit size

Around 760 * 520 * 1950mm

Main unit weight

Around 500Kg

Power supply

220VAC 50HZ

Power

1.5KW



1. Main Note for configure

1.1 Motor: TECO from Taiwan ------if change to Panasonic brand need extra cost

1.2 Load cell: made in China ------if change to Celtron brand need extra cost;

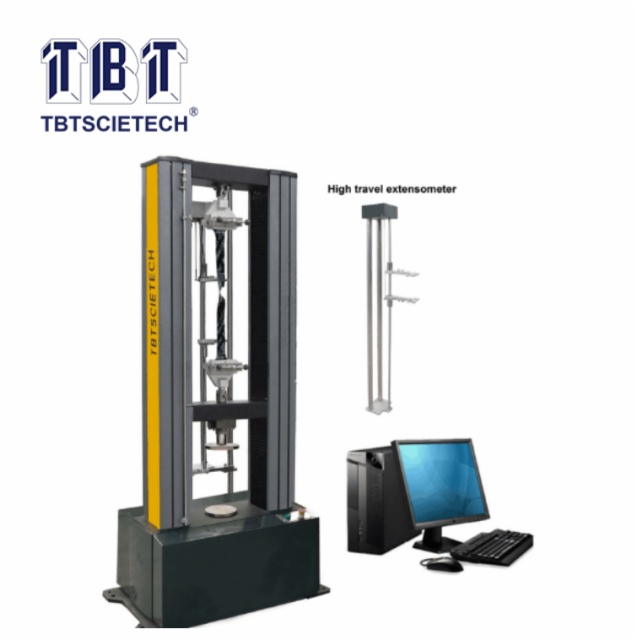

1.3 Standard configure WITHOUT big deformation device and extensometer

1.4 Standard packing list

Item

No.

specification

quantity

Remark

Main Product

1

Loading frame

1PC

Total  1 Box

2

Computer for control

1set

3

printer

1PC

Accessories

1

Clamps for Tensile

1set

2

Clamps for Compression

1set

Technical documents

1

Manual

1PC

2

Packing list

1PC

3

software Disk

1PC

4

Certificate

1PC
