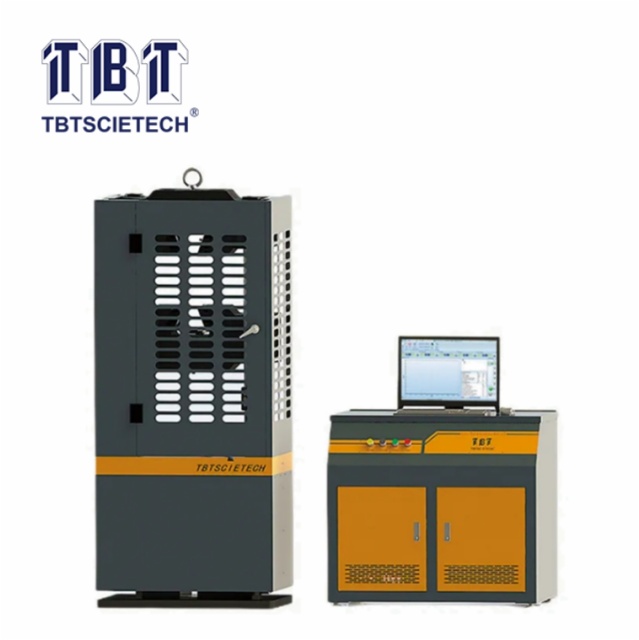

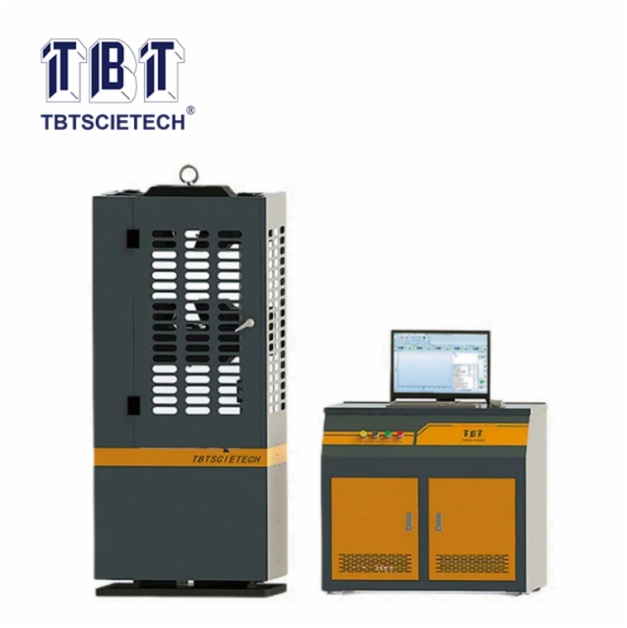

Universal Testing Machine with PC & Servo Control Manufacturer

Description
Referring Standard
Features
Technical Specification

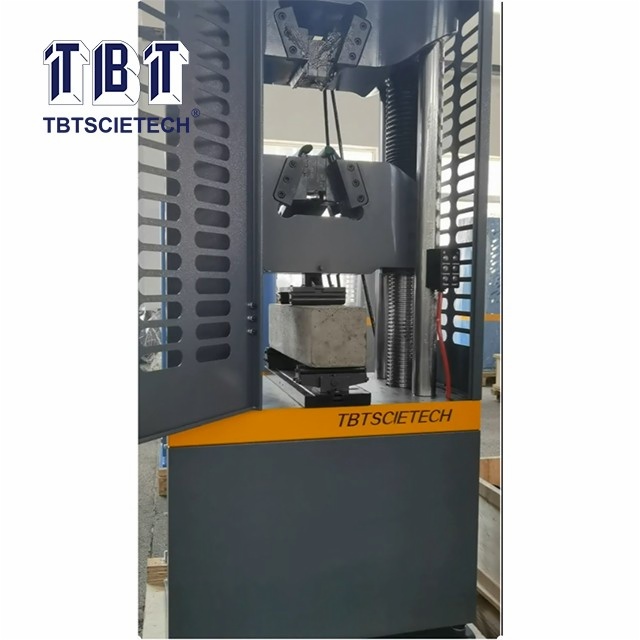

TBTUTM-1000C is mainly designed for the tension test, compression test and bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.

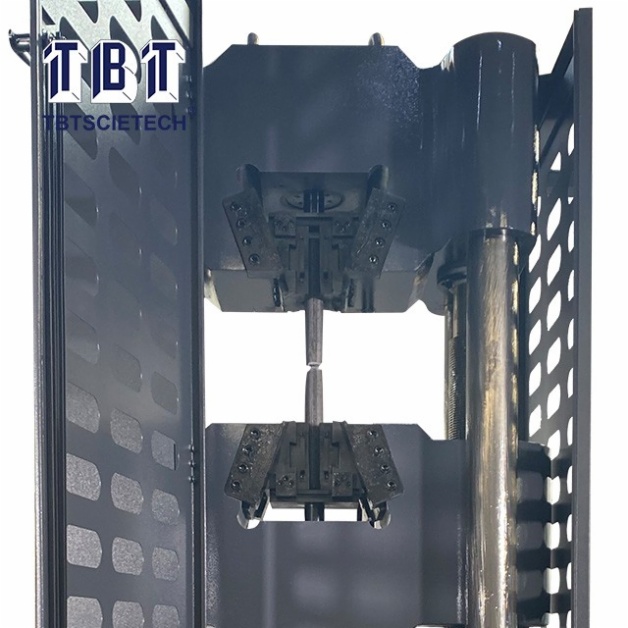

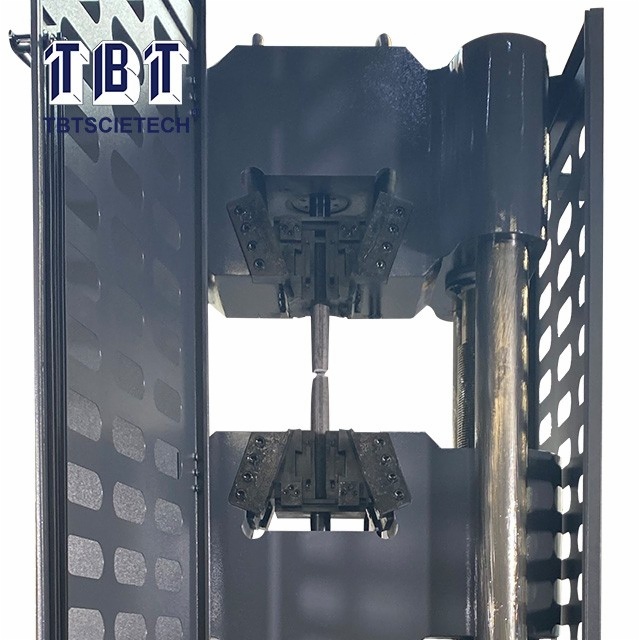

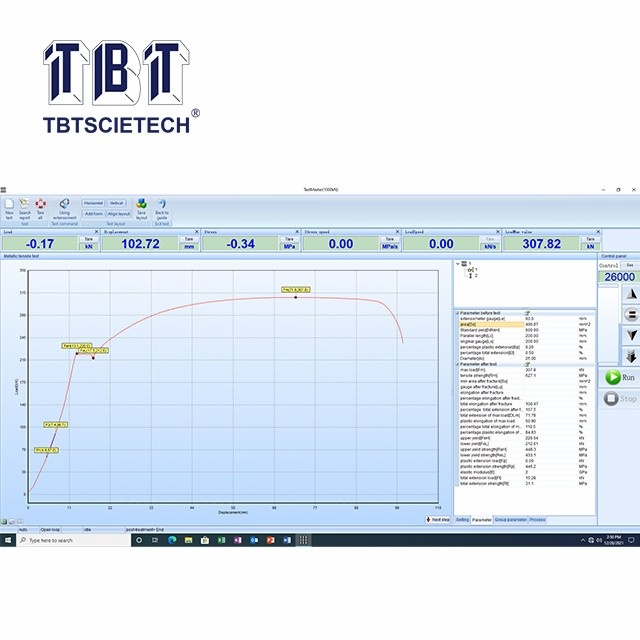

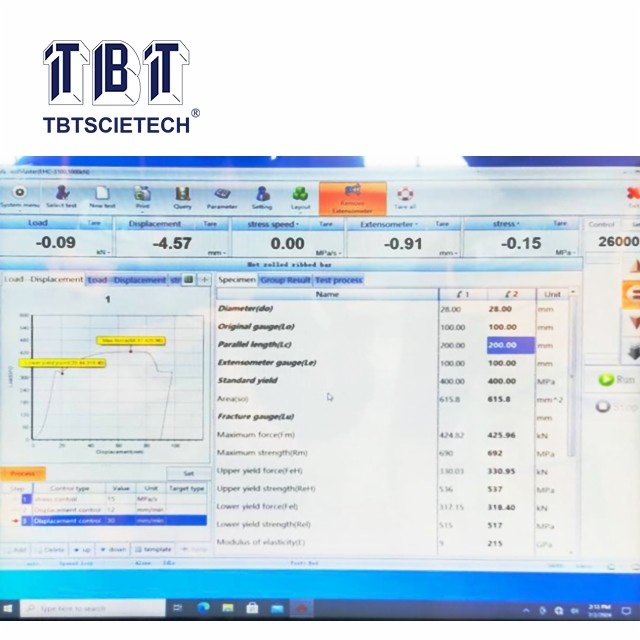

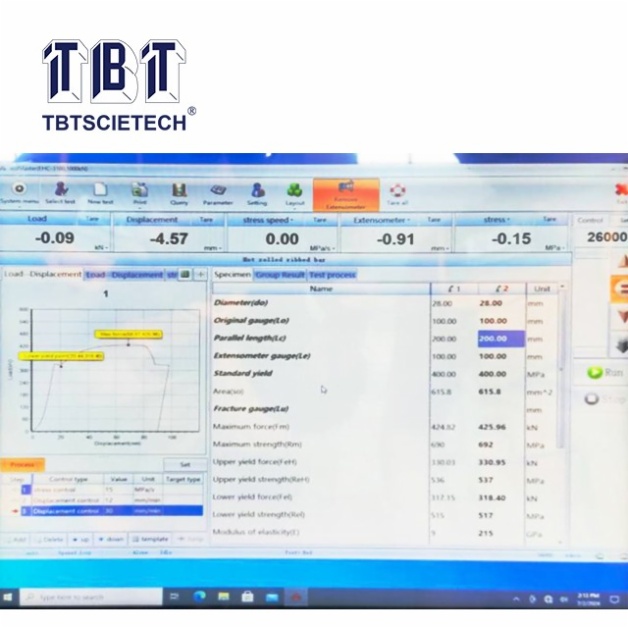

It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out.

The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.

ASTM A370, EN ISO 6892, EN ISO 7500-1, EN ISO 15630-1

1. Entire load without divide gear, the performance is more superior;

2. Adopt Cotex_M3 32-bit high-speed ARM chip as the main control chip, with high computing speed and data processing capabilities, in a short working time to complete data acquisition, PID computing, Ethernet communication to the output control of the entire control process, in order to achieve Accurate closed-loop control of the testing machine;

3. Hydraulic system with high quality hydraulic components, to ensure long-term system, stable operation;

4. With overload, limit and other protection features, safe and reliable;

5. Adopt safe and reliable digital servo valve, anti-pollution, high precision;

6. Up and down the beam to form tensile space, the lower beam and test bench to form a compression space, to facilitate the completion of a variety of tests.

Max. load capacity	1000kN
Measuring range of load	4%~100%F.S. (full range, without gear)
Reading accuracy	Grade 1 (optional grade 0.5)
Relative error	±1% (±0.5%)
Resolution	1/200,000 F.S. (1/300,000 F.S.)
Sensor type	Spoke type load cell
Column & lead screw quantity	6pcs
Lead screw size	Ф100mm
Distance between lead screws	510mm
Column size	Ф70mm
Distance between columns	540mm
Max. tensile space	600mm
Max. compression space	520mm
Round specimen clamping range	Ø14~32, Ø32~45mm
Flat specimen clamping range	0~40mm
Flat specimen jaw width	110mm
Compression platen size	Ф150mm
Bending support span	400mm
Loading roller width	160mm
Loading roller diameter	Ф50mm
Punch radius	R25mm
Piston size	Ф200mm
Piston stroke	200mm
Piston no-load speed	80mm/min
Crosshead width	230mm
Crosshead height	340mm
Crosshead speed	200mm/min
Main unit size	Approx. 860×580×2100mm
Oil source cabinet size	Approx. 1000×590×930mm
Main unit weight	Approx. 2200kg
Oil source cabinet weight	Approx. 250kg
Power Supply	220V, 50/60Hz; 380V, 50Hz
