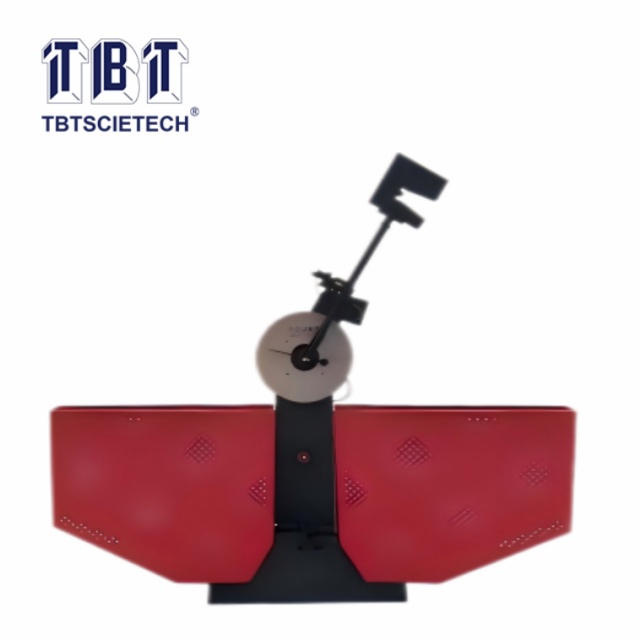

Pendulum Impact Tester Motorized TBTPCT-500B

Item Code:TBTPCT-500B Features:1.Application: The impact test determines the amount of energy absorbed by a material during fracture. TBTPCT-500B Motorized Pendulum Impact Tester is used to determine the impact strength of metal material under dynamic load. It can be used not only in metallurgy area, but also in research field.
  • Description
  • Main Specifications
  • Accessories

1. Capacity:

250J,500J



2. Application

This motorized pendulum impact tester with the function of pendulum arm immediate return back to releasing position which brings high working efficiency during continuous routine testing. This model is supplied with half protection defence.


3, Related Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
  1. Technical Specification:

Control Mode

Motorized

Max. Impact Energy

500J / 250J

Dial scale:

5J / 2.5J

Pendulum impact energy

500J / 250J

Moment of pendulum

267.9492 N·m / 133.9746 N·m

Falling Angle of pendulum

150°

Distance between pendulum shaft to specimen center

800mm

Impact Speed

5.4 m/s

Span of Specimen supports

40mm

Corner Fillet of Jaw mounted on specimen supports

1~1.5 mm

Dip angle of specimen seat

 0°

Fillet of impact blade

R 2.0~2.5 mm

included angle of impact blade

30°

Thickness of Impact Blade

16 mm

Specimen specification

10x10x55 mm

Net Dimension

Around 2300x600x1400mm

Net Weight

Around 580 KG

Power Supply

380VAC / 220VAC





Standard Configuration

6.1. Main unit ..............................................................................................1pc.
6.2. Pendulums(500J/250J 1pc each).........................................................2pcs
6.3. Span(L=40).......................................................................................... 1pc
6.4. Specimen centering block(L=40, V.U type)......................................... 1pc
6.5. Disassembler........................................................................................1pc
6.6. wrench( S=30)..................................................................................... 1pc
6.7. Hexagonal wrench(S=14)....................................................................1pc
6.8. Ground bolt(M16×200)........................................................................ 4pcs
6.9. Jaw (including bracket)....................................................................... 1 pair( mounted on support)
