TBTMWW-100 wood-based panel testing machine is used in mechanical property tests for various wood-based panels, including plywood, particle board, fiberboard, OSB (oriented structural board), cement-bonded particleboard, multi-ply parquets, bamboo flooring, MDF, decorative veneered wood-based panels, resin impregnated paper overlaid wood-based panels, and laminated flooring.

This flexural testing machine is suitable for surface gluing strength, surface bonding strength, internal bonding strength, nail withdrawal force, static bending strength, elastic modulus, glue-line shear strength tests.

It is also used in 3-point flexure test and 4-point flexure tests for super long specimen less than 3000mm.

These testing machines conform to the standards EN310, EN319, EN320, ASTM D1037, DIN52366, and JISA 5909.

Model	TBTMWW-100
Max. Test force	100kN
Load grade	Class 0.5
Measuring range of load	0.4%-100%
Load resolution	1/±300000F.S
Speed control range of load	0.005%-5%FS/S
Speed control accuracy of load	If rate＜0.05%FS, accuracy: within ±2%of set value If rate≥0.05%FS, accuracy: within ±1%of set value
Speed control range of deformation	0.005-5%FS/s
Speed control accuracy of deformation	If rate＜0.05%FS, accuracy: within ±2%of set value If rate≥0.05%FS， accuracy: within ±1%of set value
Speed control range of displacement	0.005-500mm/min
Speed control accuracy of displacement	If rate＜0.5mm/min， accuracy:±1% of the set value If rate≥0.5mm/min， accuracy:±0.5% of the set value
Stroke of cross head	1200mm
Span between columns	510mm
Working voltage	1ph, 220V, 50Hz
Power	2000W
Dimension of loading frame (LWH)	1050x560x2150mm

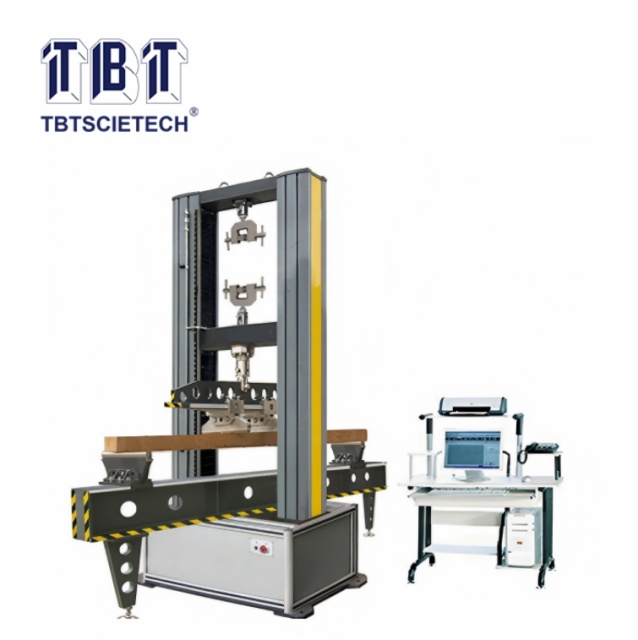

Wood-based Panel Universal Testing Machine TBTMWW-100
