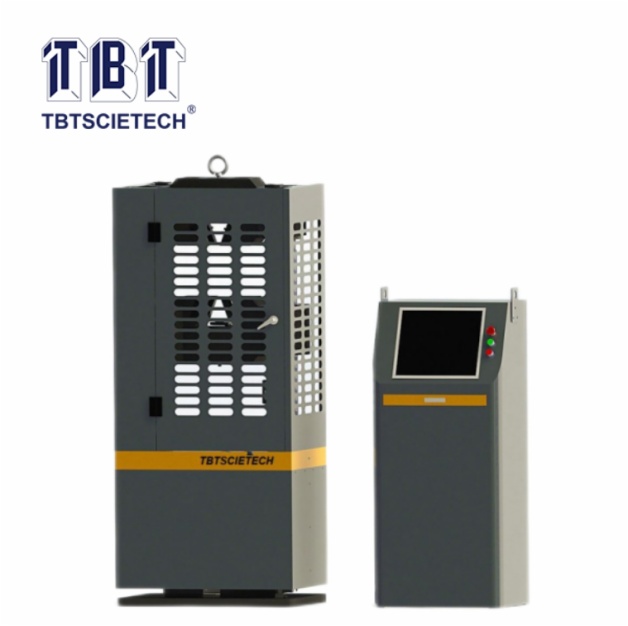

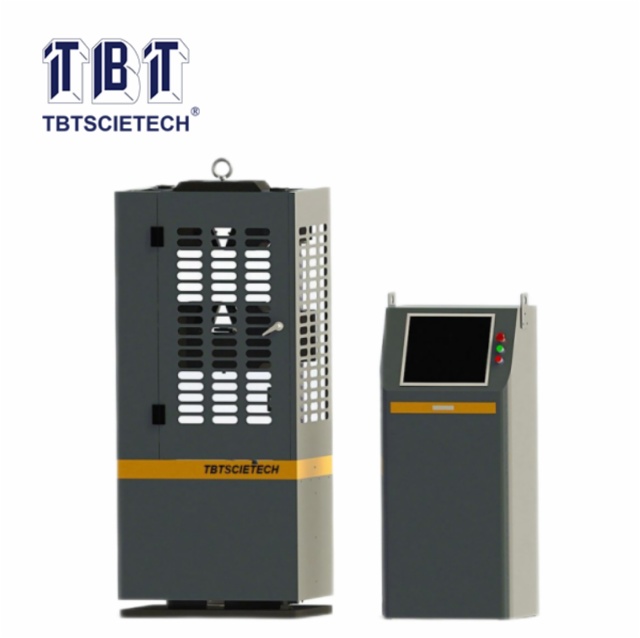

Universal Testing Machine with PC Control (Touch Screen) TBTUTM-1000CT

Item Code:TBTUTM-1000CT Features:The testing machine is mainly designed for the tension test, compression test and bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

The testing machine is mainly designed for the tension test, compression test and  bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.



It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out. It is overload protection. The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.

Model TBTUTM-100CT TBTUTM-300CT TBTUTM-600CT TBTUTM-1000CT
Max. Capacity(KN) 100 300 600 1000
Range 2%-100%F.S.(full range, without gear)
Reading accuracy Grade 1(option Grade 0.5)
Error ±1% (±0.5%)
Column Number 4 4 4 6
Width between two column 345 430 515 510
Max tensile space(mm) 500 600 600 600
Max compression space(mm) 500 600 600 600
Bending test Distance between two points (mm) 100-270 100-350 100-400 100-400
Round specimen clamp diameter(mm) Ø6-Ø22 Ø10-Ø32 Ø13-Ø40 Ø14-32,Ø32-45
Flat specimen clamp thickness (mm) 0-15 0-15 0-15 0-40
Stroke (mm) 150 200
Pistons rise fastest speed(mm/min) 100 80
Beam rising speed (mm/min) 310 250 250 310
Displacement reading relative error ±1% (±0.5%)
Deformation reading relative error ±1% (±0.5%)
Motor capacity (KW) 2 2.5
Main unit dimension (mm) 665×490×1600 740×460×1900 850×560×2000 960×620×2100
Main unit net weight (Kg) 600 1200 1750 2200
