Universal Testing Machine with PC & Servo Control Manufacturer

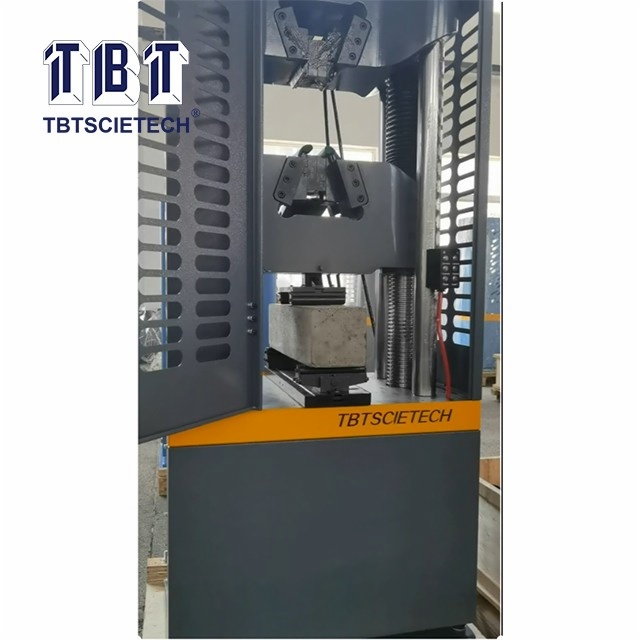

TBTUTM-100C is mainly designed for the tension test, compression test and bending test of metal, also for non-metal of flexural test, such as concrete and cement. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.

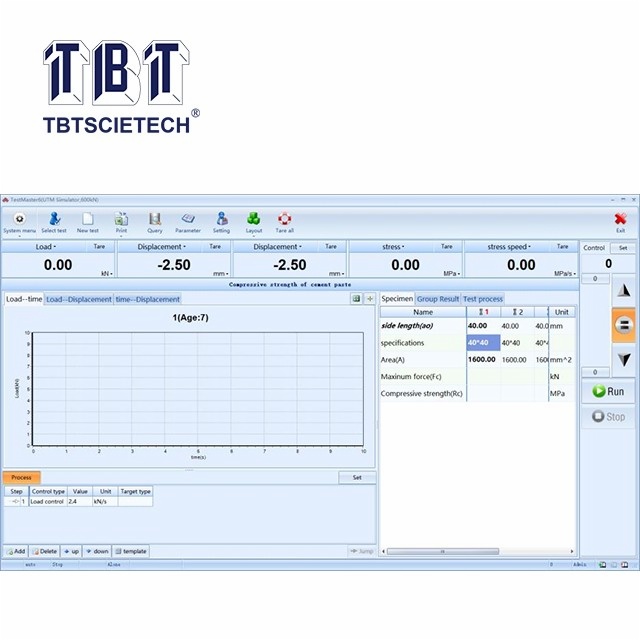

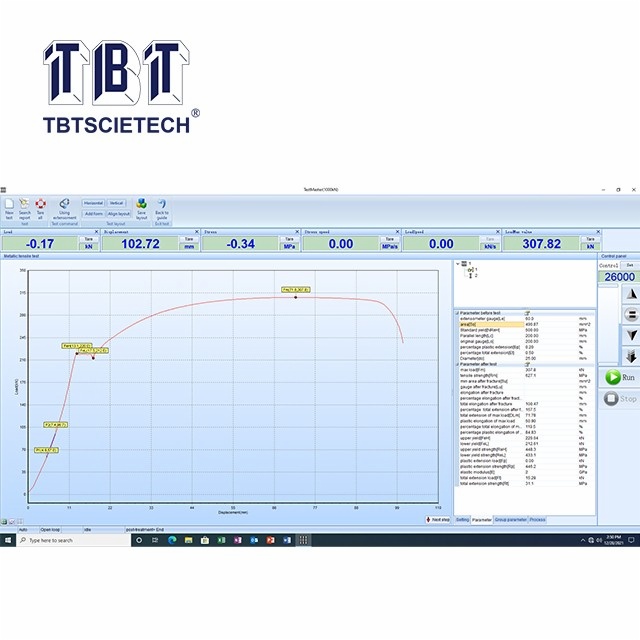

It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out.

The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.

ASTM A370, EN ISO 6892, EN ISO 7500-1, EN ISO 15630-1

1. Entire load without divide gear, the performance is more superior;

2. Adopt Cotex_M3 32-bit high-speed ARM chip as the main control chip, with high computing speed and data processing capabilities, in a short working time to complete data acquisition, PID computing, Ethernet communication to the output control of the entire control process, in order to achieve Accurate closed-loop control of the testing machine;

3. Hydraulic system with high quality hydraulic components, to ensure long-term system, stable operation;

4. With overload, limit and other protection features, safe and reliable;

5. Adopt safe and reliable digital servo valve, anti-pollution, high precision;

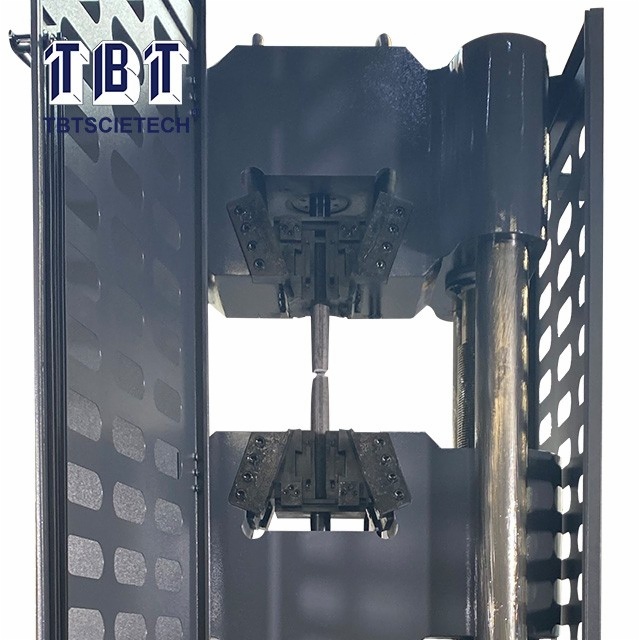

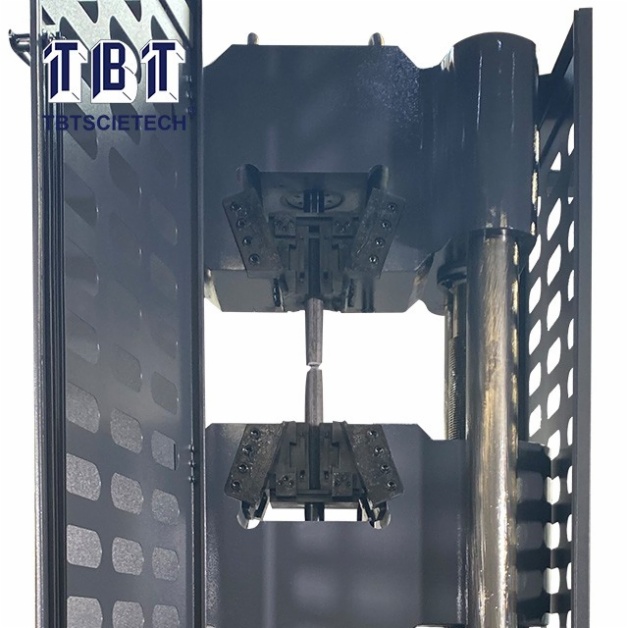

6. Up and down the beam to form tensile space, the lower beam and test bench to form a compression space, to facilitate the completion of a variety of tests.

Capacity	Max. 100kN
Measuring range	2%~100%F.S. (full range, without gear)
Reading accuracy	Grade 1 (optional grade 0.5)
Error	±1% (±0.5%)
Resolution	1/200000 F.S. (1/300000 F.S.)
Column number	4pcs
Width between two columns	350mm
Max. tensile space	500mm
Max. compression space	500mm
Bending test distance between two points	100~270mm
Round specimen clamp diameter	Ø6~22
Flat specimen clamp thickness	0~15mm
Stroke	150mm
Piston rising speed	100mm/min
Beam rising speed	310mm/min
Displacement reading relative error	±1% (±0.5%)
Deformation reading relative error	±1% (±0.5%)
Motor capacity	2kW
Main unit size	Around 665×490×1600mm
Oil source cabinet size	Around 1000×600×930mm
Main unit weight	Around 600kg
Oil source cabinet weight	Around 250kg

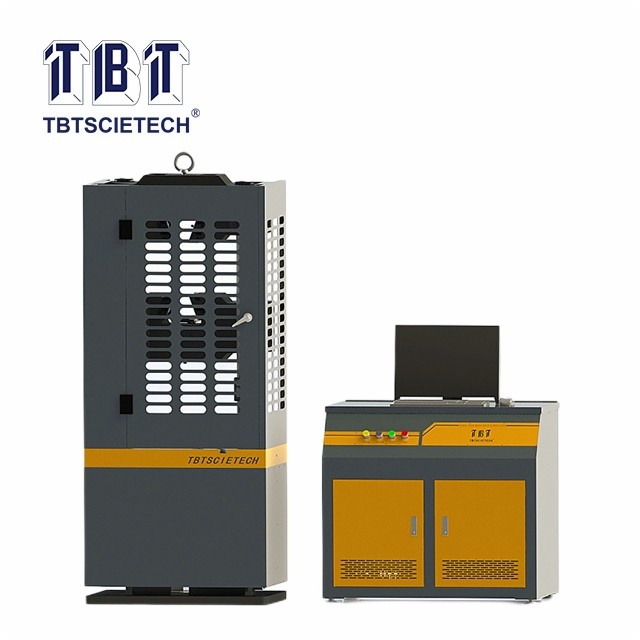

Universal Testing Machine with PC & Servo Control TBTUTM-100C
