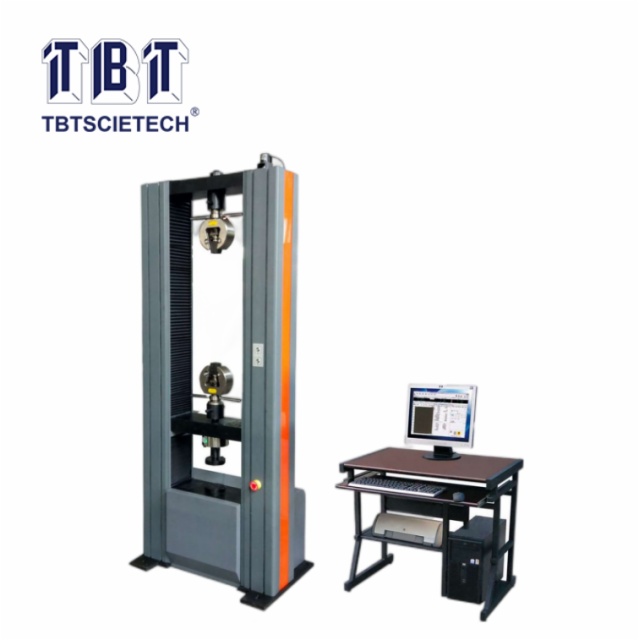

    Digital Display Electronic Universal Testing Machine TBTWDW-S50

    • Digital Display Electronic Universal Testing Machine
    • Digital Display Electronic Universal Testing Machine
    Digital Display Electronic Universal Testing Machine
    Digital Display Electronic Universal Testing Machine
    Item Code:TBTWDW-S50 Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    1.Application:

    It is applicable for wide range of material for tension, compression, bending, shearing and low cycle

    test. Suitable for metal, rubber, plastic, spring, textile and components testing.

    It is widely used in the corresponding industries, research and development, test institutes and

    training centers etc.

    2.Standard:

    ASTM, ISO, DIN, GB and other international standards.

    Max. Load

    50KN

    Structure

    Four-column Door Model

    (Upper Is Tensile And Lower Is Compression)

    Control Method

    Single Chip Control

    Load Accuracy

    1 Class

    Load Range

    2%~100%F·S (1KN~50KN)

    Displacement Resolution

    0.04um

    Test Speed

    1~500mm/min

    Tensile Space

    700mm

    Compression Space

    700mm

    Test Width

    500mm

    Power Supply

    AC 220V±10%, 50Hz

    Grips

    Wedge Type, Plate Type And Other Grips As Customers’ Demand

    Weight

    460 KG

    Dimension

    850*480*1865mm
