Automatic Pendulum impact tester(low temperture) with Cryogenic cooling Chamber Manufacturer

Related Standards:

ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007, ISO R148, ISO R83.

Main features:

Programmable logic controller (PLC) control automatic pendulum raising & hanging, automatic performing impact & temperature setting, with the function of pendulum arm immediate return back to releasing position which brings high working efficiency.

It can be equipped with fully automatic sample feeding system, which greatly improves the working efficiency.

It takes only within 2 seconds to pick specimen out of low temperature chamber & position on tester supports , which meets the rule of metal low-temperature impact test requirements.

Structure of double-column and base cast in one-piece brings the tester good rigidity & stability, guarantees test data accuracy, and greatly improves tester service life. Utilizing hydraulic buffer, the pendulum hanging is stable.

The pendulum is 3-dimensional designed to ensure precise moment and accuracy of hit point.

The impact blade is installed by screws, it is simple & convenient to be replaced.

This model is supplied with safety protection pin and full protection shield.

Technical Specification:

Control Mode	Charpy, Automatic, low temperature
Pendulum impact energy	300J
Falling Angle Of pendulum	150°
Distance between pendulum shaft and impact point	750mm
Impact Speed	5.24 m/s
Span of Specimen supports	40mm
Corner Fillet of jaw mounted on specimen seat	R1.25mm
Fillet of impact blade	R2.25mm
Dip angle of specimen seat	0°
Included angle of impact blade	30°
thickness of impact blade	16mm
moment of pendulum	160.7695N.m
Levelness for specimen supports, accepts Unevenness:	0.05mm 1/100
mode of refrigeration	compressor
capacity of specimen box	20 pcs
Low temperature range	0~60℃
Temperature control accuracy:	Fluctuation ±0.5℃, gradient 1℃
Specimen specification	10)x10(7.5, 5x55 mm
Dimensions	1600x850x1530mm
Weight	850 KG
Power Supply	380V, 50Hz
Environmental conditions:	no corrosive medium around, no vibration, no strong electromagnetic field around.

Standard Configuration

5.1. Main unit of 300J..................................................................................1pc.
5.2. Pendulum (300J ).................................................................................1pc

5.3. Motor (mounted on main unit)..............................................................1pc
5.4. Pendulum transmission device (mounted on main unit) .....................1 set
5.5. Pendulum automatic hanging device (mounted on main unit) ............1 set

5.6 Refrigeration with temperature control device......................................1 set

5.7 Automatic specimen feeding device (mounted on main unit)...............1 set

5.8 Specimen support leveling adjuster......................................................1 set
5.9. Photoelectric sensor ............................................................................1 pc
5.8. Lenovo PC ...........................................................................................1 set
5.9. Printer ..................................................................................................1 set

5.10.Measuring software .............................................................................1 set

5.11.Specimen centering block ................................................................... 1pc
5.12.Pressure pump .....................................................................................1set

5.13.Ground bolt(M16×200)........................................................................ 4pcs

5.14. Full protection defence........................................................................1 set

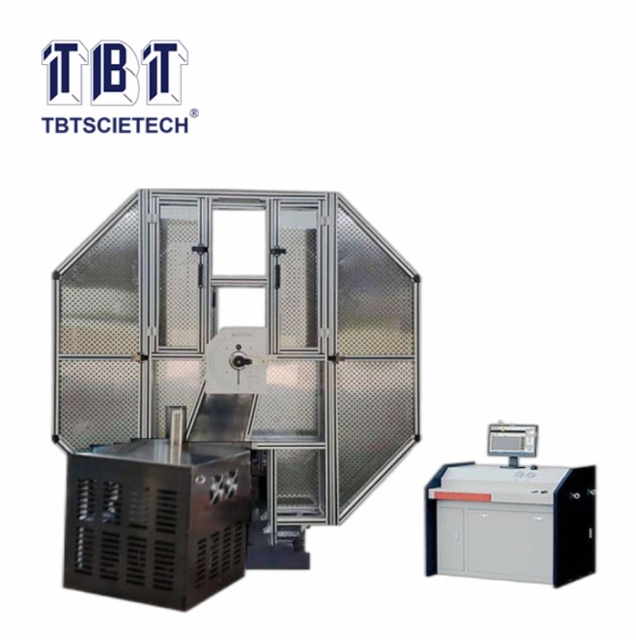

Automatic Pendulum impact tester(low temperture) with Cryogenic cooling Chamber TBTPCT-W300CYZ
