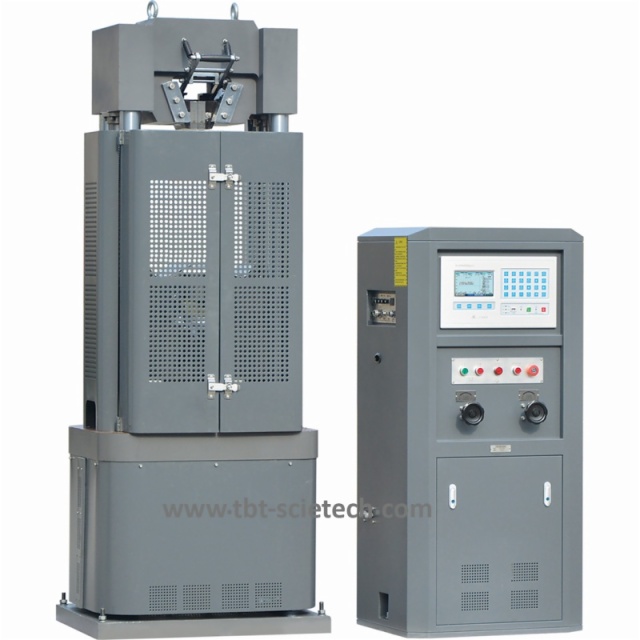

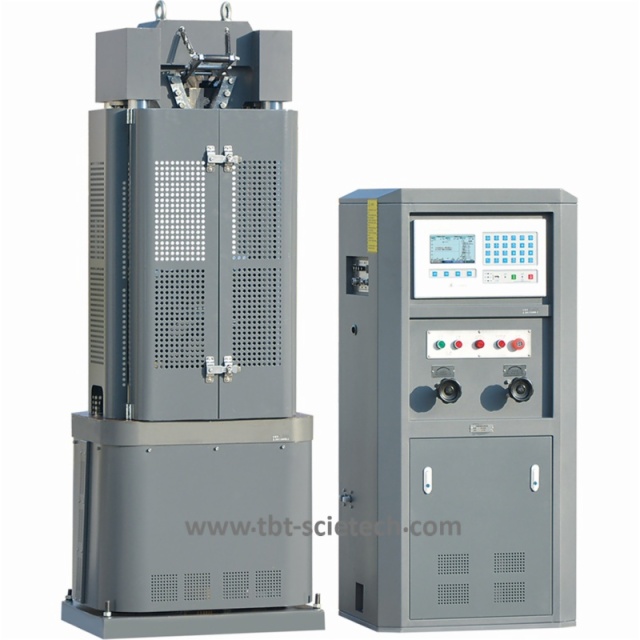

Universal Testing Machine with Digital Display TBTUTM-100BS/TBTUTM-300BS/TBTUTM-600BS/TBTUTM-1000BS

  • Universal Testing Machine with Digital Display
  • Universal Testing Machine with Digital Display
Item Code:TBTUTM-100BS/TBTUTM-300BS/TBTUTM-600BS/TBTUTM-1000BS Features:
  • Description
  • Main Specifications
  • Accessories

This series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.

This series of products for the fuel tank under the home, tension and compression space spacing electrically adjustable, four-column, two-screw, double space frame structure.Measurement unit consisting of high-quality electronic components monolithic computer screen instrument table, to ensure reliable operation and accurate measurement device.

The series has test force, deformation, loading curve, automatically record test data, print the test results, you can communicate with the computer through a computer display, processing data.

This series of products with GB/T228、GB/T2611、GB/T3159 standard requirements.



Model

TBTUTM-100BS

TBTUTM-300BS

TBTUTM-600BS

TBTUTM-1000BS

Max.Capacity(KN)

100

300

600

1000

Accuracy class

Lever 1(0.5)

Max distance of compression plate(mm)

500

600

600

600

Max distance of tensile

600

700

700

700

Piston stoke(mm)

200

200

200

200

Diameter of round specimen(mm)

Φ6-φ22

Φ10-φ32

Φ13-φ40

Φ14-φ45

Diameter of flat specimen(mm)

0-15

0-20

0-20

0-40

Maximum distance of bending test(mm)

300

300

300

300

Load control

Manual

Specimen clamping method

Manual

Hydraulic / manual

Hydraulic / manual

Hydraulic / manual

Demensions of host(mm)

800*620*1850

800*620*1870

800*620*1900

900*700*2250

Demensions/Weight of Oil source cabinet

550*500*1200mm/160kg

Power(KW)

1.1

1.8

2.2

2.2

Weight of host(kg)

1400

1500

1800

2500
