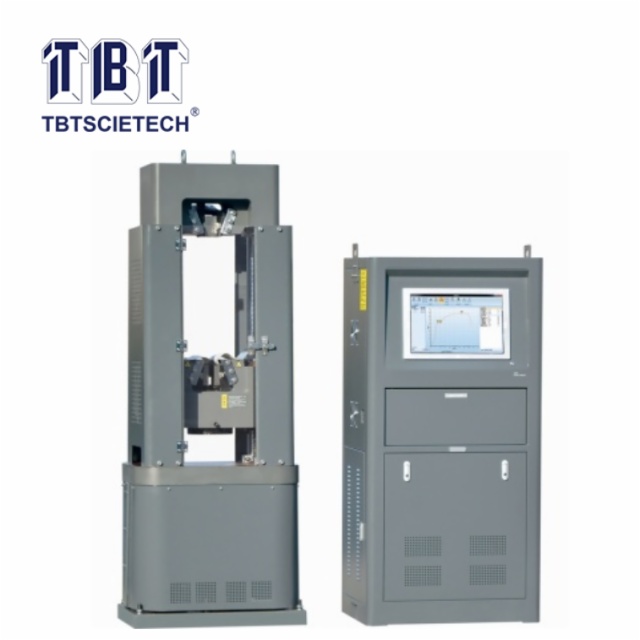

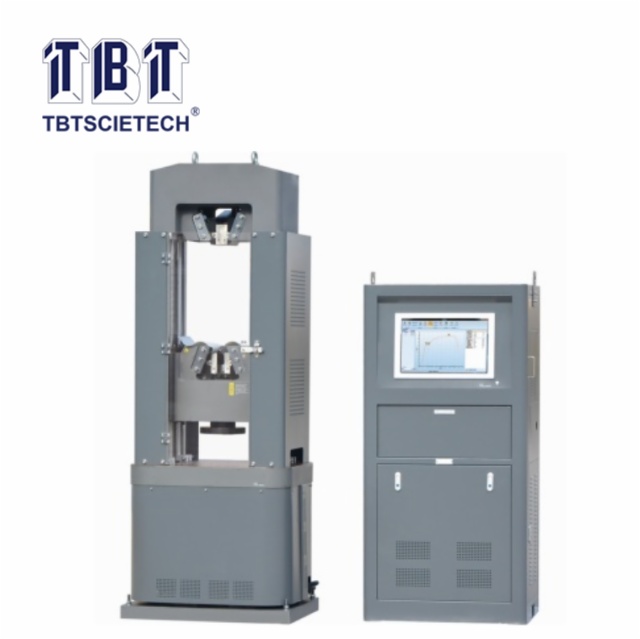

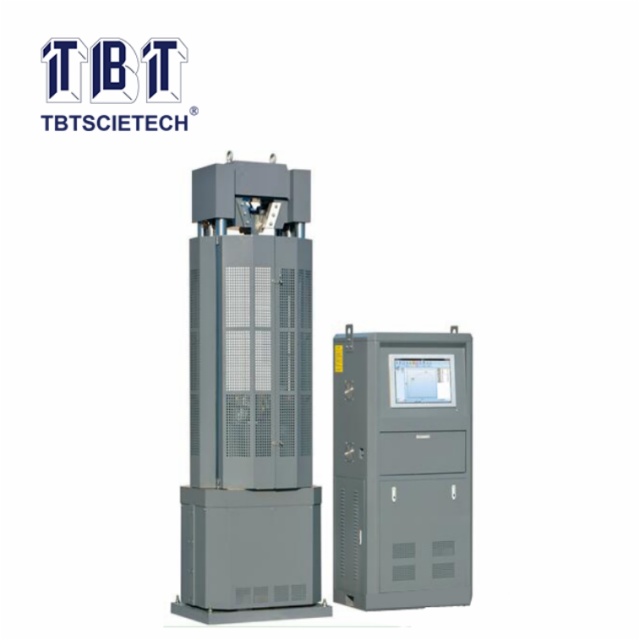

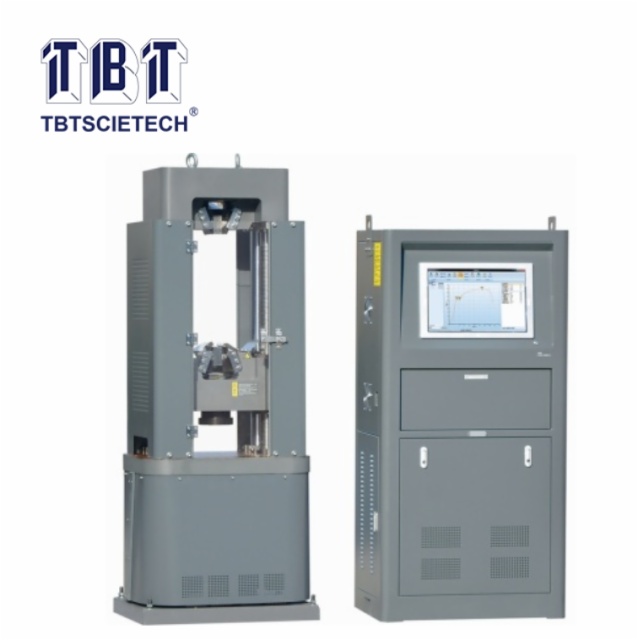

Versatile Universal Testing Machine with PC & Servo control for both steel bar & steel strand TBTUTM-CSIG Series

  • Versatile Universal Testing Machine with PC & Servo control for both steel bar & steel strand
  • Versatile Universal Testing Machine with PC & Servo control for both steel bar & steel strand
  • Versatile Universal Testing Machine with PC & Servo control for both steel bar & steel strand
  • Versatile Universal Testing Machine with PC & Servo control for both steel bar & steel strand
  • Versatile Universal Testing Machine with PC & Servo control for both steel bar & steel strand
Item Code:TBTUTM-CSIG Series Features:TBTUTM-CSIG Series
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBTUTM-CSIG series machines (two functional) are mainly used for metal, non-metal materials tensile, compression, bending, shearing and other mechanical properties.

The machine recently is upgraded to with transparent acrylic safety cover.

Model:

TBTUTM-600CSIG

TBTUTM-1000CSIG

Capacity:

600KN

1000KN

Accuracy degree:

Grade 1

Grade 1

Relative error:

±1%

±1%

Effective measurement range:

1%-100%F·S(full measurement)

1%-100%F·S(full measurement)

Deformation measurement range

1%-100%F·S

1%-100%F·S

Deformation indicate relative error

±1%

±1%

Displacement relative error

±1%

±1%

Displacement measurement resolution

0.001mm

0.001mm

Stress rate relative error

±2%

±2%

Displacement rate control relative error

±1%

±1%

The strain rate control adjustment range

0.00025/s-0.0025/s

0.00025/s-0.0025/s

The strain rate control relative error

±2%

±2%

Stress, deformation & displacement control range

0.3%-100%F·S

0.3%-100%F·S

Stress, deformation & displacement relative error

≦1%

≦1%

Middle beam lifting speed

320 mm/min

320 mm/min

Distance between upper and lower platen

900mm

900 mm

Tensile distance

900mm max

900 mm max

Effective distance between two columns

375mm

455mm

Piston stroke

200mm

200 mm

Piston loading max. speed

120mm/min

100 mm/min

Round specimen diameter

Φ13 mm -Φ40 mm

Φ14 mm -Φ45 mm

Flat specimen diameter

0 mm -20 mm

0 mm -40 mm

Steel strand clamp diameter

Φ8 mm –Φ18 mm

Φ8 mm –Φ18 mm

The maximum distance between the bending test

300mm

300 mm

Total power

2.2KW

2.2KW

Power supply

380VAC

380VAC
