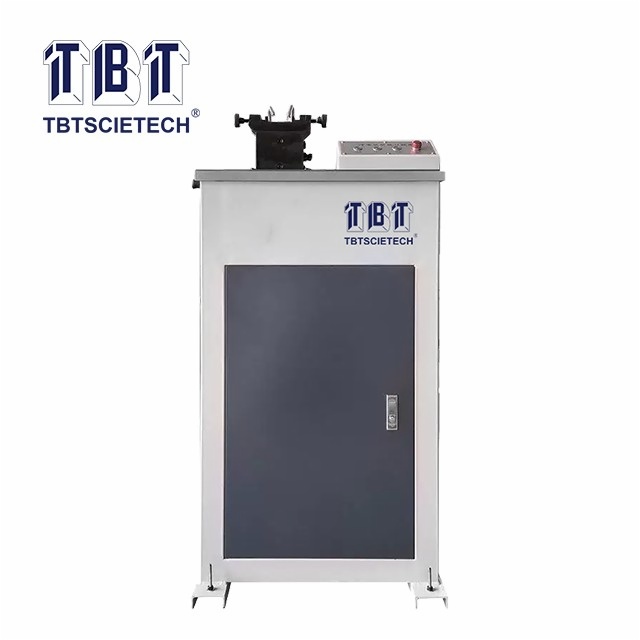

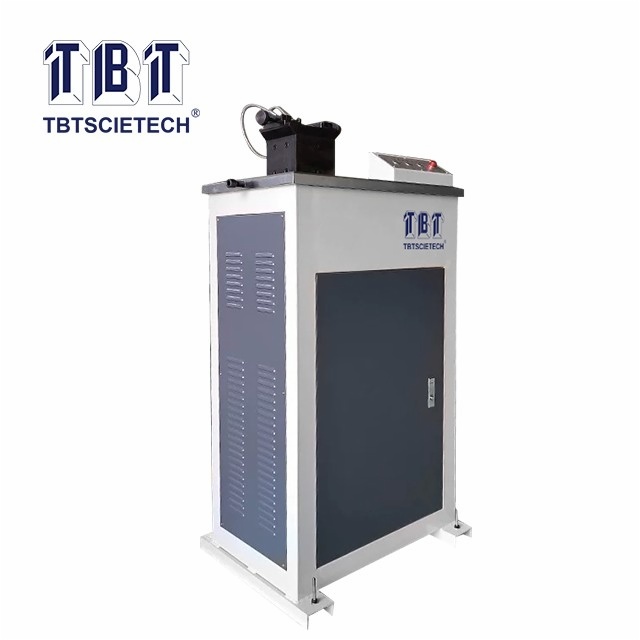

    Electronic Hydraulic Notch Cutter for Impact Specimen TBTLY-UV

    Electronic Hydraulic Notch Cutter for Impact Specimen
    Item Code:TBTLY-UV Features:Introduction: TBTLY-UV notch cutter is specially designed for specimen preparation for impact test according to standard GB/T229-2007.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Technical Specification

    No.

    Items

    specification

    1

    Notch type

    U/V type 2mm（GB/T229-2007/ASTM/EU）

    2

    Specimen size

    55㎜×10㎜×10㎜（2.5mm、5mm、7.5mm）

    3

    Cutting speed

    2.6m/min

    4

    Travel of cutting knife

    330mm

    5

    power

    380V 50Hz

    6

    dimension

    Around 660×400×1200mm

    7

    weight

    Around 200KG



    1. Configuration:

    Main unit .......................................................................1pc

    U/V cutting knife............................................................1 pc each (mounted on machine)

    Instruction manual.........................................................1pc
