Elmendorf Tearing Tester Manufacturer

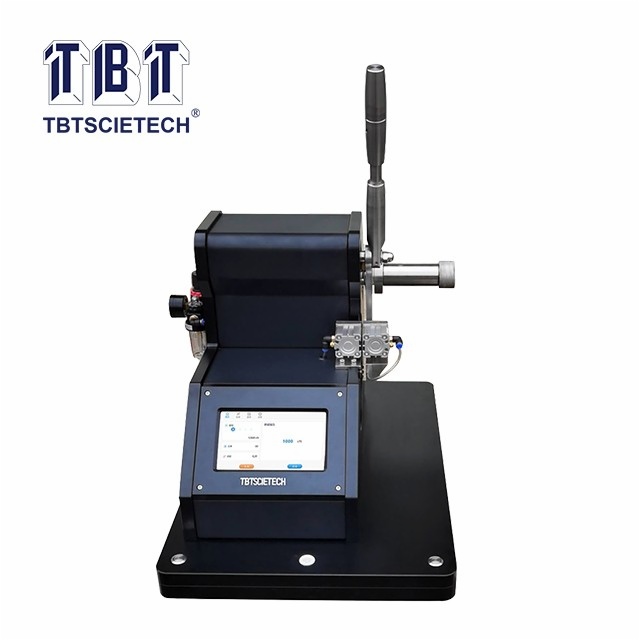

Elmendorf Tearing Tester TBTET-033S

Item Code:TBTET-033S Features:TBTET-033S is designed referring to ISO 13937-1 Textiles- Tear properties of fabrics Part 1: Determination of tear force using ballistic pendulum method (Elmendorf).

Description
Referring Standard
Features
Technical Specification

TBTET-033S is designed referring to ISO 13937-1 Textiles- Tear properties of fabrics Part 1: Determination of tear force using ballistic pendulum method (Elmendorf).

It is used to determine the tear strength of various woven fabrics, and is also applicable to materials such as non-woven fabrics, paper, and plastic sheeting.

ISO 13937-1

1.Industrial-grade color touchscreen display and control;

2.Automated force measurement eliminates manual scale reading, with a digital encoder ensuring precise testing and an accuracy of ≤±0.5% FS;

3.Pneumatic specimen clamping provides constant holding force, and the pneumatic pendulum release mechanism avoids systematic errors caused by human factors;

4.Automated slitting reduces operational intensity;

5.Multiple measurement unit selections to adapt to different standard requirements;

6.Specimen number can be set arbitrarily, with statistical analysis performed automatically after testing;

7.The instrument automatically displays a prompt on the screen if it is within an invalid measurement range;

8.Automatic correction function for pendulum friction damping improves measurement accuracy;

9.Proprietary instrument calibration technology enables multi-point calibration;

10.Supports test report printing and USB connection to a computer for data storage and viewing.

Color touchscreen	7 inches
Printer	Micro thermal printer
Measurement range	A: 0~16 N, B: 0~32 N, C: 0~64 N, D: 0~128 N
Testing accuracy	≤ ±0.5% FS
Measurement units	N, cN, kgf, gf, lbf
Operation mode	Pneumatic clamping, pneumatic release, motorized slitting
Acceleration of gravity	Digitally adjustable by region
Data output mode	Display and printed output
Slit length	20±0.2mm
Tear angle	27.5±0.5°
Jaw separation	3±0.3mm
Size	440x600x720mm
Weight	60kg
Power supply	220V, 50Hz
