Stretch Recovery Tester Manufacturer

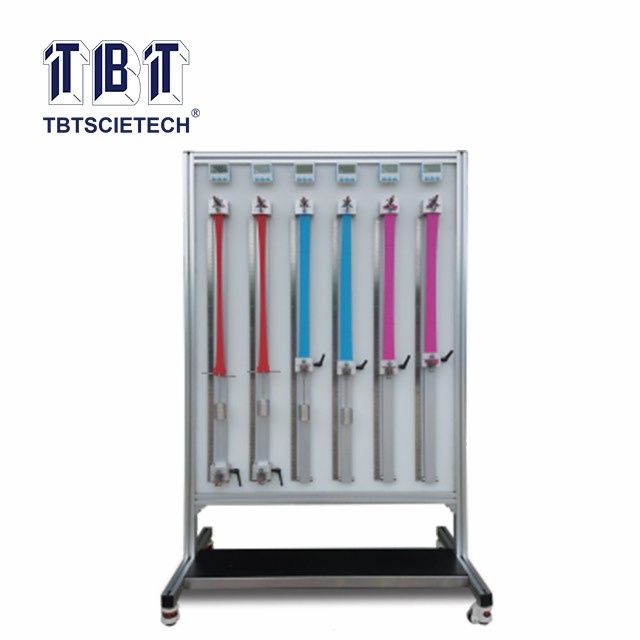

Stretch Recovery Tester TBTSRT-037A

Item Code:TBTSRT-037A Features:TBTSRT-037A is designed referring to ASTM D3107 Standard Test Methods for Stretch Properties of Fabrics Woven from Stretch Yarns.

Description
Referring Standard
Features
Technical Specification

TBTSRT-037A is designed referring to ASTM D3107 Standard Test Methods for Stretch Properties of Fabrics Woven from Stretch Yarns.

It is used for static stretch and recovery testing of elastic fabrics, supporting both constant-load testing, which measures fabric elongation under a specified tension to calculate the stretch rate, and constant-elongation testing, which extends the fabric to a designated elongation, monitors the dimensional changes after tension removal, and calculates both the elastic recovery rate and the residual deformation rate.

ASTM D3107

1.Supports both constant-load and constant-elongation testing;

2.Equipped with a specialized elongation scale for convenient marking, measurement, and calculation;

3.Outfitted with individual timers at each workstation for easy tracking of testing intervals;

4.Features quick-release clamps on specimen holders for fast and efficient sample loading;

5.Designed with smoothly sliding specimen holder bases and positioning blocks for locking anywhere along the guide rails;

6.Constructed with premium aluminum alloy guide rails and sample clamps featuring a sandblasted and anodized surface finish;

7.Built with a high-grade heavy-duty industrial aluminum profile frame offering extra thickness and superior structural strength;

8.Configured with SUS304 stainless steel weights to ensure excellent corrosion resistance and rust prevention;

9.Implements leveling casters on the base feet for easy mobility and stable installation.

Testing workstations	6
Scale length	1000 mm
Timers	6units
Elongation scale	1unit
Weights	6 sets of 3 lbs weight combinations, 6 units of 1 lb slotted weights
Accessories	Accessories: 6 pins
Weight combination (3 lbs)	Weight of adjustable clamp holder+slotted weight A= 3lbs
Weight combination (4 lbs)	Weight of adjustable clamp holder+slotted weight A+ 1lb additional weight= 4 lbs
Size	1080x610x1680mm
