Flatness and Straightness Testing Machine Manufacturer

Item Code:TBTTCJD-1000/1000D Features:TBTTCJD-1000/1000D is designed referring to ISO 10545-2 Part 2: Determination of dimensions and surface quality. It can test the flatness, straightness and straightness of varied of wall tiles devices need to be equipped with standard board can be used

Description
Referring Standard
Features
Technical Specification

TBTTCJD-1000/1000D is designed referring to ISO 10545-2 Part 2: Determination of dimensions and surface quality. It can test the flatness, straightness and straightness of varied of wall tiles devices need to be equipped with standard board can be used, the size of the standard board and the size of the test sample to one one; ceramic tiles testing standard board (aluminum alloy material) specifications can be customized.

ISO 10545-2

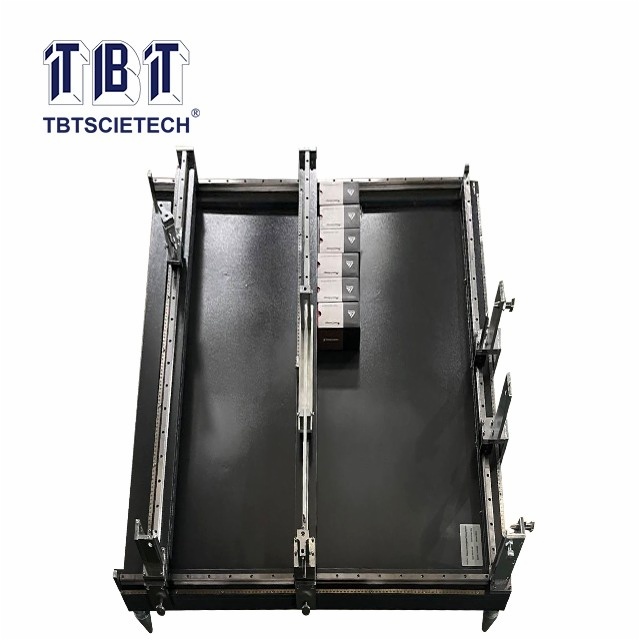

1.TBTTCJD-1000D adopts linear bearing and use guide rail type, more easier and accurate operation;

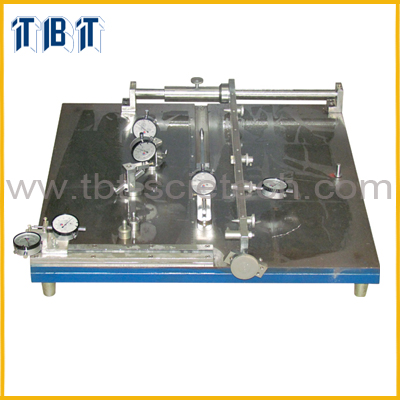

2.TBTTCJD-1000 is non guide rail model for economic choice;

3.Both models can equip with optional standard board in different sizes;

4.Both models support to select optional dial gauge in different brands like Mitutoyo.

Accuracy

±0.1mm

Tile size

600x600mm

800x800mm

1000x1000mm

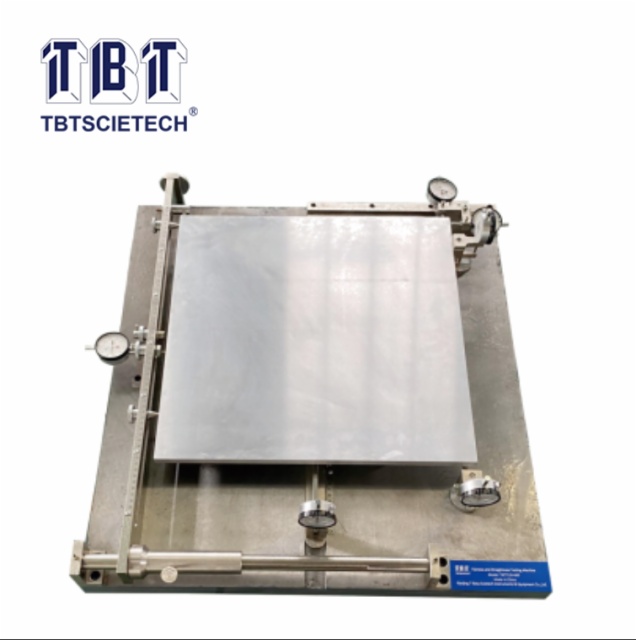

Flatness and Straightness Testing Machine TBTTCJD-1000/1000D
