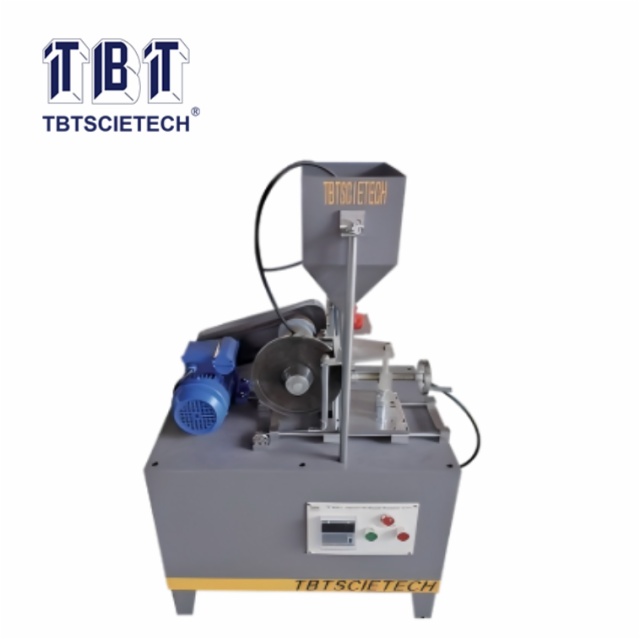

    Unglazed Tile Abrasion Resistance Tester TBTWM-1

    Unglazed Tile Abrasion Resistance Tester
    Item Code:TBTWM-1 Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    This machine can satisfy GB/T3810.6—2006 、ISO 10545.6-1995standard which is for non-glaze tiles and mosaic wear-resistant test. The RPM of the grinding wheel can be preset and automatically controlled.



    RPM of the grinding wheel

     75r/min

    Steel wheel diameter

    Φ200±0.1mm

    The feeding speed of the grinding material

    （100±10）g/100r

    Voltage

    380V or 220V





    Any questions, please contact us.

    Email: sales@tbt-scietech.com;toni_gu@tbt-scietech.com

    Tel: 86-25-8472 1577/8472 1579/8472 1907



    Other Products

    Product Name:
    Flatness and Straightness Testing Machine
    Model:
    TBTTCJD-1000/1000D
    Description:
    TBTTCJD-1000/1000D is designed referring to ISO 10545-2 Part 2: Determination of dimensions and surface quality. It can test the flatness, straightness and straightness of varied of wall tiles devices need to be equipped with standard board can be used
    Product Name:
    Ceramic Tile Bending Machine with Digital Display
    Model:
    TBTTCKZ-10000
    Description:
    TBTTCKZ-1000 is designed referring to ISO 10545-4 Part 4: Determination of modulus of rupture and breaking strength. It adopts electric loading system to load evenly, can measure the fracture modulus and breaking strength of the product, and the replacement of the fixture can also be used to measure the parameters such as burst resistance.
