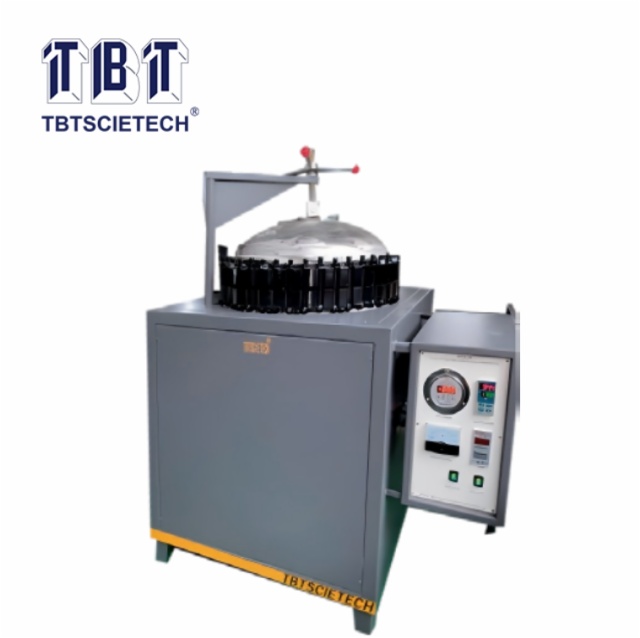

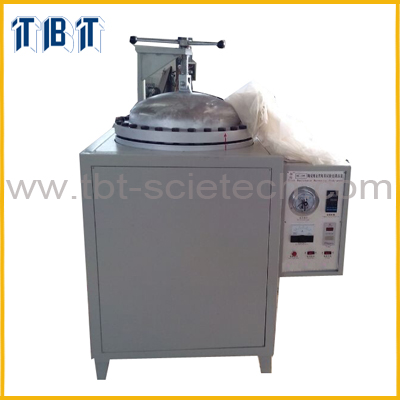

Ceramic Autoclave(Tile Glaze Brick Crazing Resistance Tester) Manufacturer

TBTTCKL-300/500 is designed referring to ISO 10545 Part 11: Determination of crazing resistance for glazed tiles.

This device can be used to ceramic glaze tile and other pressure test among 0~1.0MPa.

ISO10545-11:1995

1.No-contact constant pressure, while the time is fixed digitally;

2.Rigid pressure tank for stable and safe running;

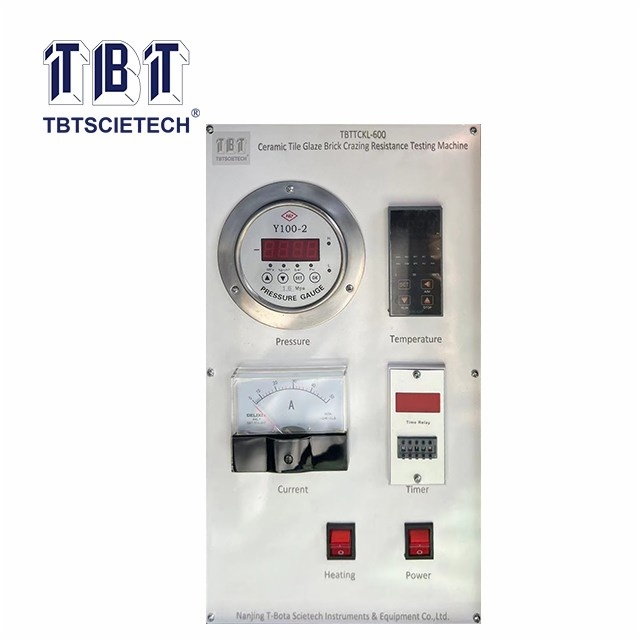

3.Good quality electric contact pressure gauge, safety valve and electric heater.

Chamber size	Ф300×300mm/Ф500×500mm **customized chamber size is acceptable
Temperature	180℃ when at around 1.0MPa/10bar
Rated pressure	1.0MPa/10bar
Pressure accuracy	±20kPа
Pressure control method	No-contact automatic constant pressure Digitally set constant pressure time
Power	4kW/9kW
Power supply	380V, 50/60Hz
