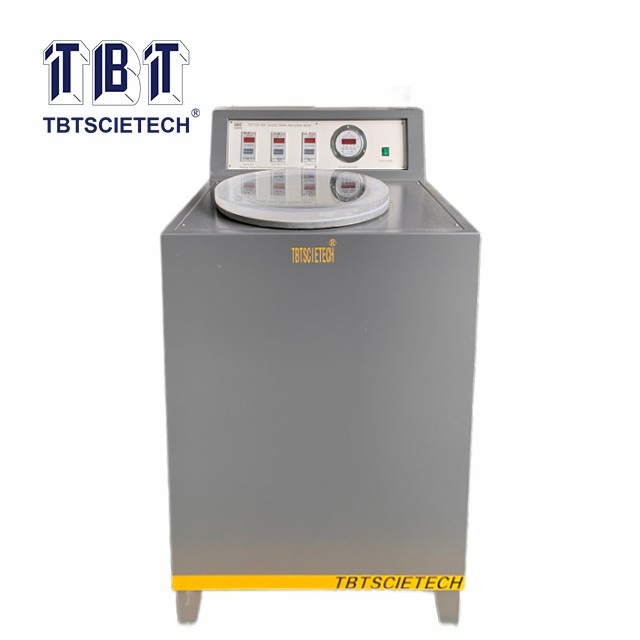

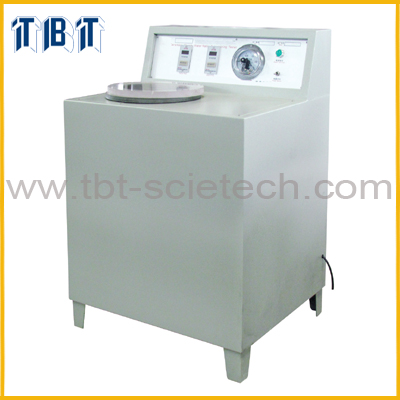

    Ceramic Water Absorption Meter TBTTCXS-250/400

    • Ceramic Water Absorption Meter
    • Ceramic Water Absorption Meter
    • Ceramic Water Absorption Meter
    Ceramic Water Absorption Meter
    Ceramic Water Absorption Meter
    Ceramic Water Absorption Meter
    Item Code:TBTTCXS-250/400 Features:TBTTCXS-250/400 is designed referring to ISO 10545 Part 3: Determination of water absorption, apparent porosity, apparent relative density and bulk density.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTTCXS-250/400 is designed referring to ISO 10545 Part 3: Determination of water absorption, apparent porosity, apparent relative density and bulk density.
    It can be used for daily-use ceramics, building sanitary ceramics, electric porcelain and refractory materials.
    It can also be used for the water absorption of brick, cement products, refractory materials, etc. materials.

    ISO 10545-3

    1.The device adopts electromechanical integration structure;
    2.Durable water circulation vacuum pump with low noise and low power consumption.

    Degree of vacuum

    10±5kPa

    (when the standard atmospheric pressure is 101±5kPa)

    Vacuum holding time

    0~120min adjustable

    Injection time

    0~99min 59s adjustable

    Soak time

    0~99hours 59min adjustable

    Capacity

    Φ250×300mm or Φ400×400mm

    Power Supply

    220V, 50Hz



    Other Products

    Product Name:
    Ceramic Tile Bending Machine with Digital Display
    Model:
    TBTTCKZ-10000
    Description:
    TBTTCKZ-1000 is designed referring to ISO 10545-4 Part 4: Determination of modulus of rupture and breaking strength. It adopts electric loading system to load evenly, can measure the fracture modulus and breaking strength of the product, and the replacement of the fixture can also be used to measure the parameters such as burst resistance.
    Product Name:
    Ceramic Glazed Tile Abrasion Resistance Tester
    Model:
    TBTLM-8
    Description:
    TBTLM-8 is designed referring to ISO 10545 Part 7: Determination of resistance to surface abrasion for glazed tiles. The method is to put the grinding material on the glaze surface and do the grinding test, then compare the difference of the surfaces.
