Ceramic Tile Bending Machine with Digital Display Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTTCKZ-1000 is designed referring to ISO 10545-4 Part 4: Determination of modulus of rupture and breaking strength. It adopts electric loading system to load evenly, can measure the fracture modulus and breaking strength of the product, and the replacement of the fixture can also be used to measure the parameters such as burst resistance.

It is widely used in ceramic pipes, glazed tiles, building sanitary ceramics, electric porcelain, daily-use ceramics, refractory materials, etc.

ISO 10545-4

Max. loading capacity	10000N
Tile size	100×100~600×600mm 100×100~800×800mm 100×100~1000×1000mm
Loading speed	5~700N/S
Rate of increase in stress	1N/(mm²S)±0.2N/(mm² S)
Measurement accuracy	0.5% (Data microcomputer processing)
Displayer & controller	Digital pressure display and maintain peak pressure. It can be loaded at a constant speed, and the loading rate is displayed digitally
Power supply	220V, 50Hz

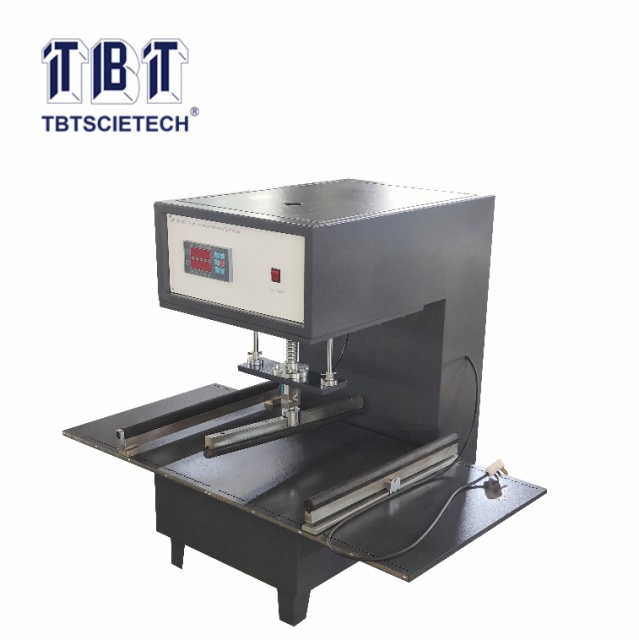

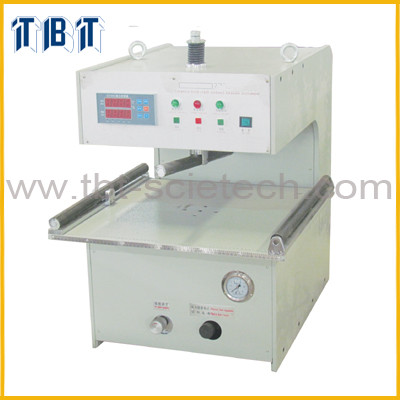

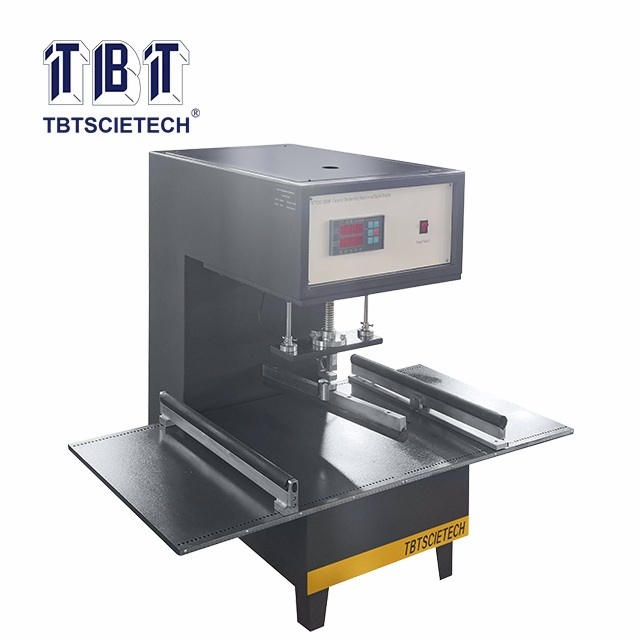

Ceramic Tile Bending Machine with Digital Display TBTTCKZ-10000
