Ceramic Glazed Tile Abrasion Resistance Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTLM-8 is designed referring to ISO 10545 Part 7: Determination of resistance to surface abrasion for glazed tiles. The method is to put the grinding material on the glaze surface and do the grinding test, then compare the difference of the surfaces. The distance between the center of the supporting turntable and the center of each sample is 195, and the distance between the two adjacent sample fixtures is equal.

ISO 10545-7

1.Durable frame for stable running during abrasion;

2.High quality motor for long term use and accurate speed;

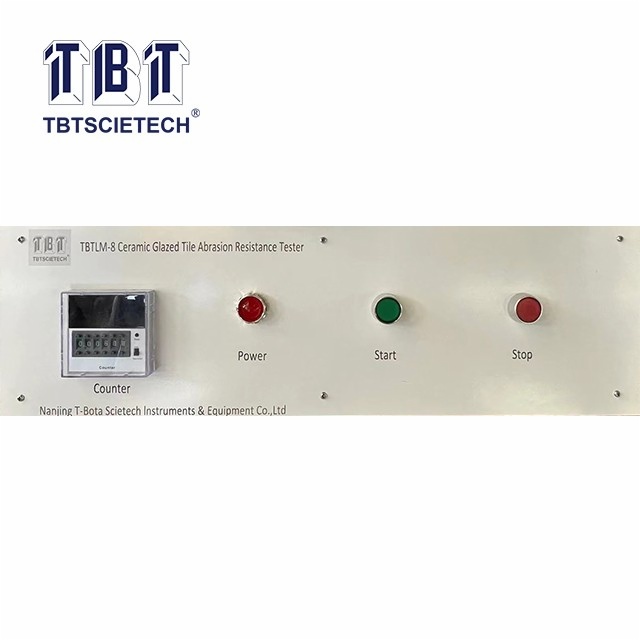

3.Digital control panel for convenient setting.

Tile quantity	8pcs
Tile size	100×100mm
Rated rotation speed of supporting assembling	300±10%rpm
Eccentric distance	22.5mm
Motor power	1.1kW
Power supply	220V, 50Hz

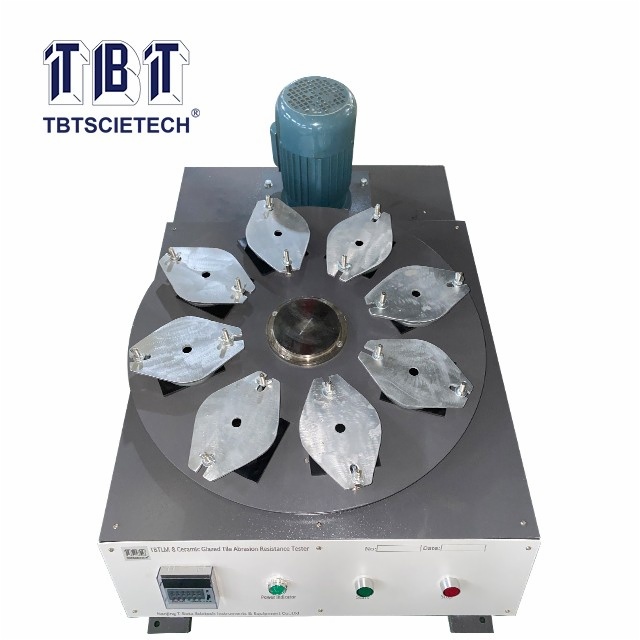

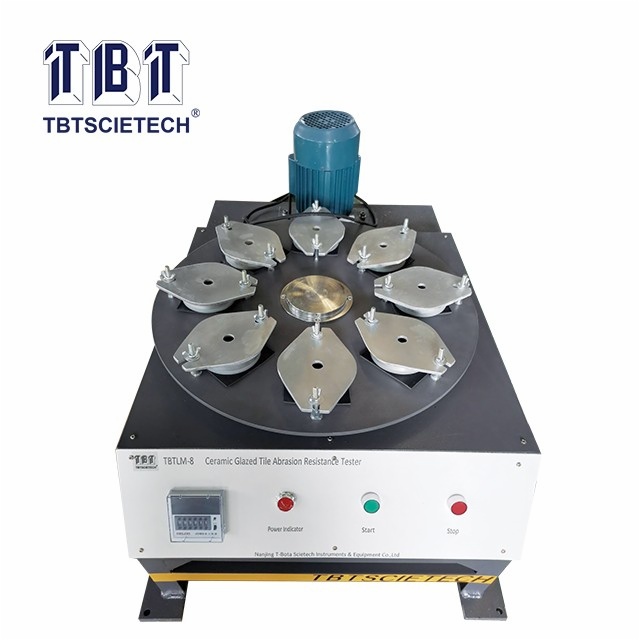

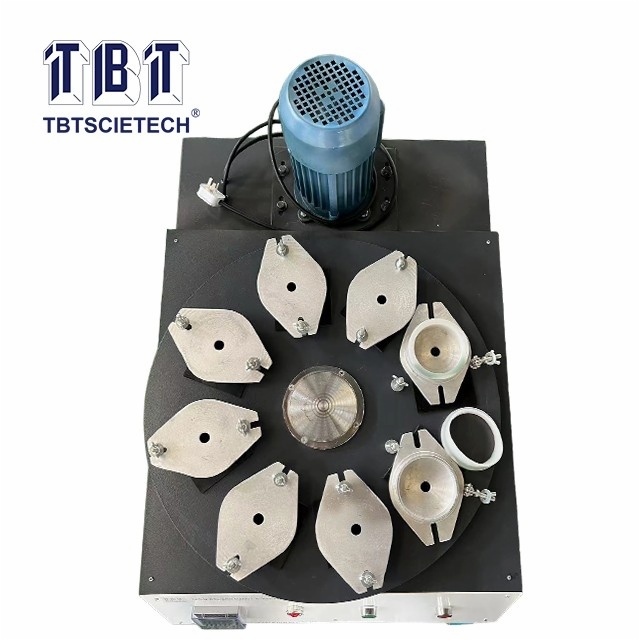

Ceramic Glazed Tile Abrasion Resistance Tester TBTLM-8
