Melt Flow Tester with Touching Screen Manufacturer

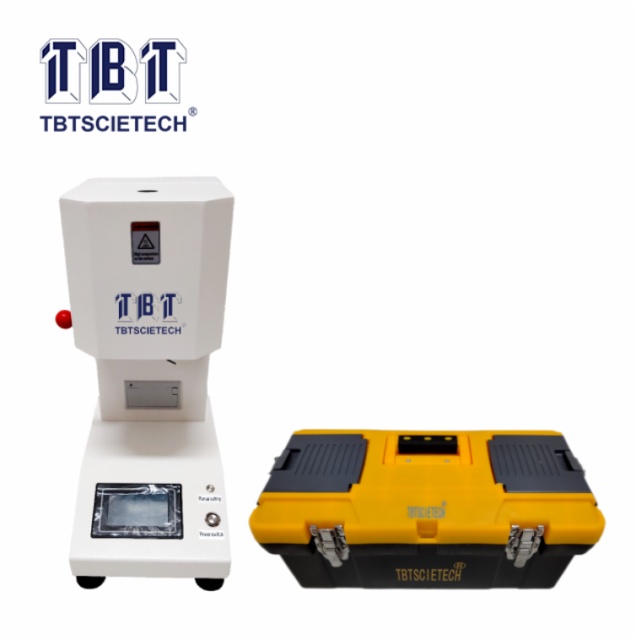

Melt Flow Tester with Touching Screen TBT-MI-B

Item Code:TBT-MI-B Features:

Description
Main Specifications
Accessories

It is used to determine the MFR value of the melt flow rate of various plastics and resins in a viscous flow state. It is suitable for engineering plastics such as polycarbonate, polyarylsulfone, nylon, etc., with higher melting temperature, also for polyethylene (PE) , Polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), polycarbonate (PC) resin and other low melting temperature plastic testing, widely used in plastic production, plastic products, petroleum Chemical and other industries, as well as related colleges, research institutes and commodity inspection departments.

Item	Detail	Specification	Conform to
Extrusion part	Diameter of barrel feeding opening	9.5504 ± 0.0076 mm	ASTM D 1238-04 5.2
	Barrel length	162mm	ASTM D 1238-04 5.2
	Outer diameter of barrel, sensor opening, finishing and hardness		ASTM D 1238
	Die diameter	2.0955 ± 0.0051 mm	ASTM D 1238-04 5.3
	Die length	8.000 ± 0.025 mm	ASTM D 1238-04 5.3
	Piston head diameter	9.4742±0.0076 mm	ASTM D 1238-04 5.4.1
	Piston head length	6.35±0.13mm	ASTM D 1238-04 5.4.1
Standard test loading		8 levels
Temperature range		room temperature-450℃
Constant temperature accuracy		±0.5℃
Display resolution		0.1℃
Cutting method		manual or automatic optional
Constant temperature time		work continuously
Printer		Automatic printout of micro printer
Power supply		AC 220V±10% 50HZ

Melt Flow Tester with Touching Screen TBT-MI-B
