Pendulum Impact Tester (Charpy & IZOD) Manufacturer

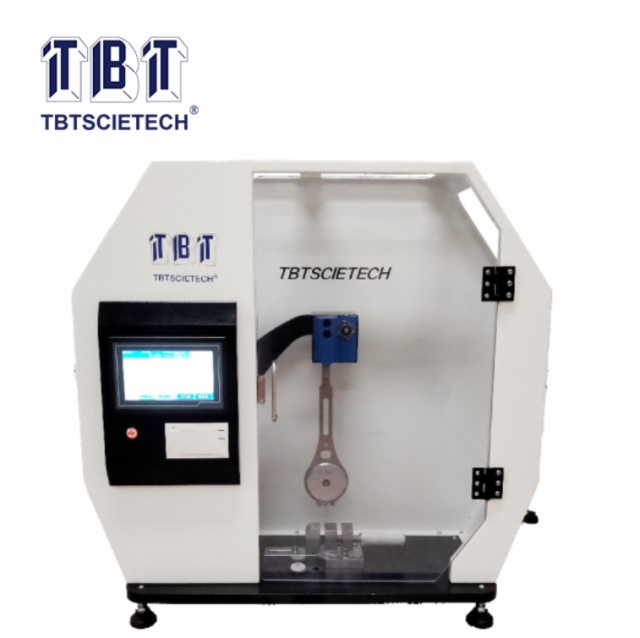

Pendulum Impact Tester (Charpy & IZOD) TBT-6151,TBT-8052

Enlarge

Item Code:TBT-6151,TBT-8052 Features:

Description
Main Specifications

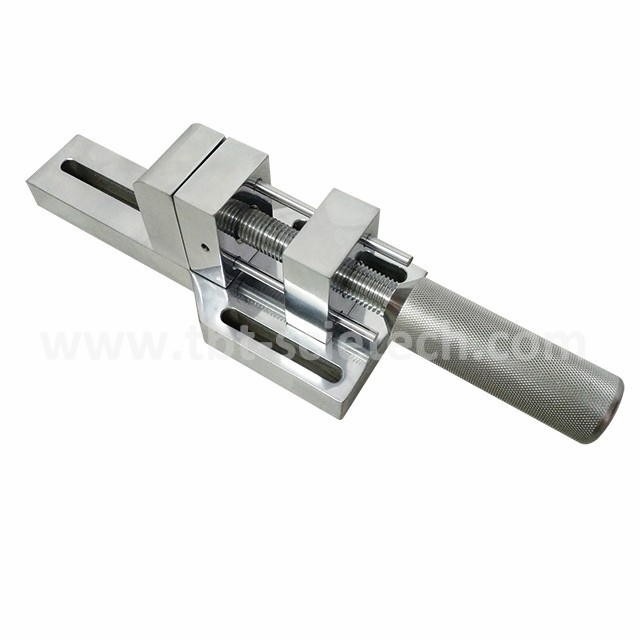

Accessories

The pendulum impact tester is used to measure impact performance of non-metallic materials, when the clampedspecimen is broken by impact of specified weight under stated falling angle, system will calculate the absorbedenergy and specimen impact strength.

The application range is plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, and electrical insulating materials.

Item	Charpy	IZOD
Energy capacity	1J, 2J, 4J, 5J	1J, 2.75J, 5.5J
Impact Speed	2.9m/s	3.5m/s
Impact Distance	221mm	335mm
Pendulum falling angle	150°	150°
Anvil span	40, 60, 70, 95mm adjustable
Radius of striker round edge	R=2mm	R=0.8±0.2mm
Angle of striker blade edge	30°
Relative Standard	IS0 179, ASTMD256	ISO 180-20, ASTM D256
Power	220VAC, 50Hz	220VAC, 50Hz
Resolution	0.001J	0.001J
