Muffle Furnace(1200℃) Manufacturer

TBTMF series muffle furnace adopts polycrystalline mullite fiber lining, and total thickness is 120-250mm, to ensure very good thermal effect. Double layer of furnace shell with fan cooling, surface temperature is less than 60℃, strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

It is mainly used for univerisities, research institutes and production enterprises for sintering, melting, analysis of metal, non-metal and other chemial compound materials.

Inside Chamber Size	100x100x100mm
Standard Working Temperature	1600℃
Maximum Working Temperature	1700℃
Temperature Control	30 segments programmable and PID auto control,
Heating Rate	0-15℃/min.
Heating Element	MoSi2 Heating Elements
Working Voltage	AC 220V 50HZ 1 phase( also can produce according to your requirements)
Max. Power	3KW
Quantity	1 Unit
Gross Weight	43 KGS

Chamber size	300x300x300mm (Width x Height x Depth)
Max. temperature	1200℃
Working temperature	1100℃
Temperature control	● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor ● 50 programmable segments for precise control of heating rate, cooling rate and dwell time ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection ● Over temperature protection and alarm allows for operation
Heating rate	0~20 ℃/min
Thermocouple	K type
Temperature accuracy	±1℃
Heating element	High quality resistance wire
Furnace structure	Double layer steel casing with dual cooling fan, furnace shell temperature < 60℃
Furnace door	● Front open to aside ● Power cutting off when furnace door open
Furnaceinsulation	Two layers of ceramic fiber insulation materials ● First layer: 1430℃ ceramic fiber board ● Second layer: 1260℃ ceramic fiber board
Max. power	8kW
Power supply	380V, 50Hz

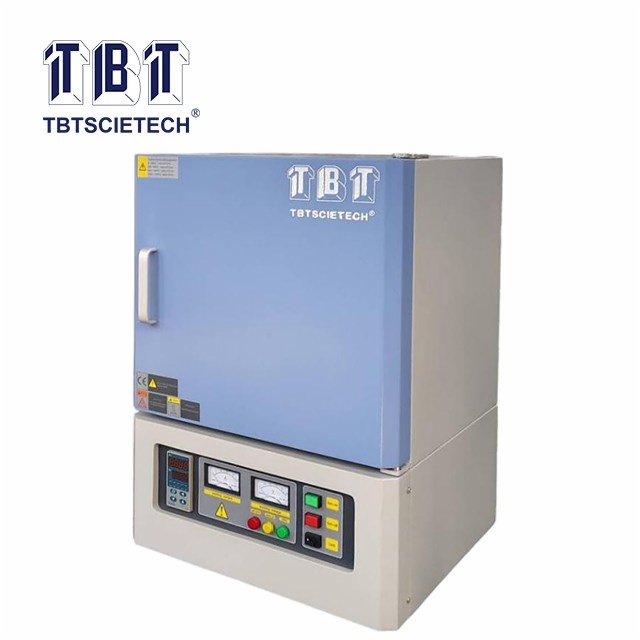

Muffle Furnace(1200℃) TBTMF-1200-27
