Muffle Furnace(1400℃) Manufacturer

TBTMF series muffle furnace adopts polycrystalline mullite fiber lining, and total thickness is 120-250mm, to ensure very good thermal effect. Double layer of furnace shell with fan cooling, surface temperature is less than 60℃, strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

It is mainly used for univerisities, research institutes and production enterprises for sintering, melting, analysis of metal, non-metal and other chemial compound materials.

Chamber size	250x250x300mm (Width x Height x Depth)
Max. temperature	1400℃
Working temperature	1300℃
Temperature control	● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor ● 50 programmable segments for precise control of heating rate, cooling rate and dwell time ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection ● Over temperature protection and alarm allows for operation
Heating rate	0~20 ℃/min
Thermocouple	K type
Temperature accuracy	±1℃
Heating element	High quality resistance wire
Furnace structure	Double layer steel casing with dual cooling fan, temperature of furnace shell below 60 ℃
Furnace door	● Front open to aside ● Power cutting off when furnace door open
Furnace insulation	Two layers of ceramic fiber insulation materials ● First layer: 1430°C ceramic fiber board ● Second layer: 1260°C ceramic fiber board
Power supply	380V, 50Hz

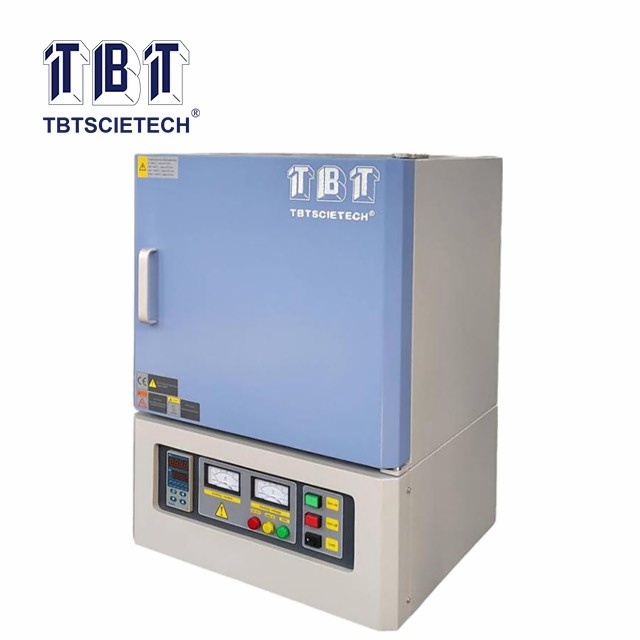

Muffle Furnace(1400℃) TBTMF-1400-18.8
