Penetrometer Manufacturer

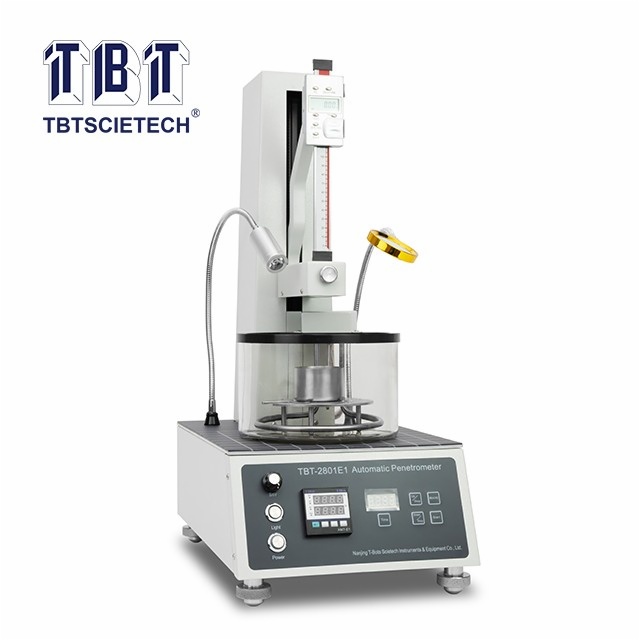

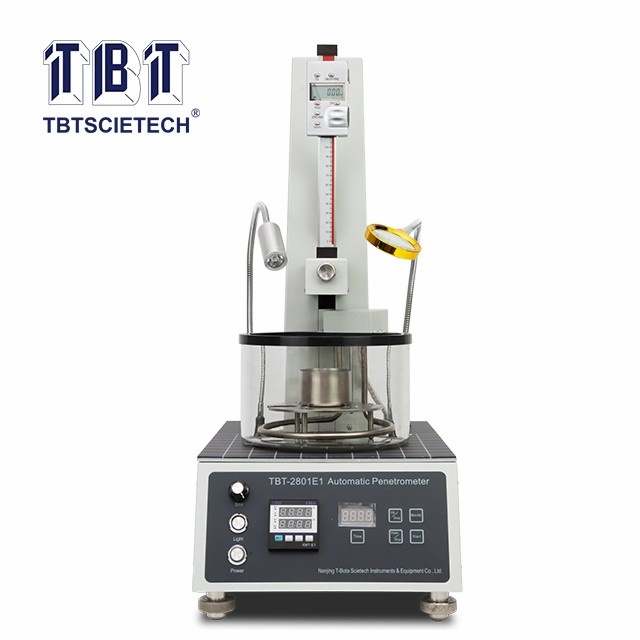

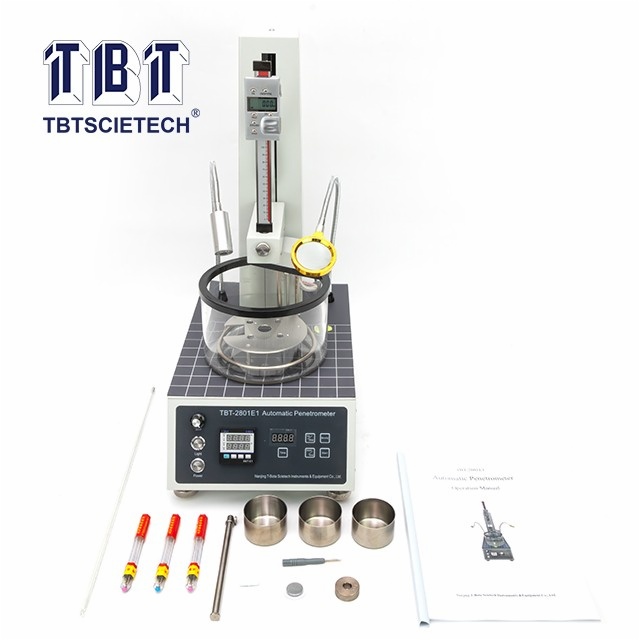

Penetrometer TBT-2801E1

Enlarge

Item Code:TBT-2801E1 Features:TBT-2801E1 is made as per ASTM D5 Standard Test Method for Penetration of Bituminous Materials.

Description
Referring Standard
Features
Technical Specification

TBT-2801E1 is made as per ASTM D5 Standard Test Method for Penetration of Bituminous Materials.

It is suitable to determine the penetration of asphalt. With additional kit, it can be used to test petroleum waxes and cone penetration grease.

ASTM D5

1. It adopts high precision temperature controller, make temperature setting more convenient and temperature control more accurate;

2. It equips with cold light source and magnifying glass, easy to use and operate;

3. It equips with penetration display, the data is stable and accurate, easy to observe;

4. It has the function of coarse and fine adjustment of lifting frame, which is convenient for the needle point to align with the sample plane.

Measurement range	0 penetration~600 penetrations
Resolution	0.1 penetration(0.01mm)
Timing range	5s, 8s, 10s, 12s, 30s, 60 s, and the error is less than ±0.1s
Power consumption	200W
Temperature control accuracy	25℃±0.1℃
Constant temperature bath	Hard glass chamber
Stirring	Magnetic stirrer, rotary stirring
Working environment	Temperature: 15~35℃; relative humidity: ≤85%RH
Size	260×400×640mm
Weight	16kg
Power supply	220V, 50Hz
