Penetrometer for Grease Manufacturer

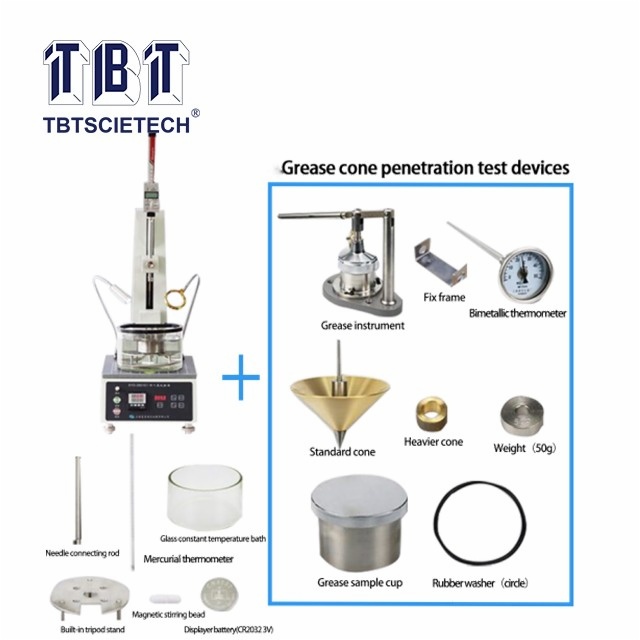

Penetrometer for Grease TBT-2801E1

Enlarge

Item Code:TBT-2801E1 Features:TBT-2801E1 is designed referring to ASTM D217 Standard Test Method for Cone Penetration of Lubricating Grease and Petrolatum.

Description
Referring Standard
Features
Technical Specification

TBT-2801E1 is designed referring to ASTM D217 Standard Test Method for Cone Penetration of Lubricating Grease and Petrolatum.

It is suitable to determine the cone penetration grease.

ASTM D217

1. Using high precision temperature controller, the temperature setting is convenient and the temperature control precision is high;

2. Equipped with cold light source and magnifying glass, easy to use and operate;

3. Equipped with penetration display, the data is stable and accurate, easy to observe;

4. It has the function of coarse and fine adjustment of lifting frame, which is convenient for the needle point to align with the sample plane.

Measurement range	0 penetration~600 penetrations
Resolution	0.1 penetration(0.01mm)
Timing range	5s, 8s, 10s, 12s, 30s, 60 s, and the error is less than ±0.1s
Power consumption	200W
Temperature control accuracy	25℃±0.1℃
Constant temperature bath	Hard glass chamber
Stirring	Magnetic stirrer, rotary stirring
Working temperature & humidity	15~35℃, ≤85%RH
Size	260×400×640mm
Weight	16kg
Power supply	220V, 50Hz
