    In-plane Water Discharge Capacity Test Apparatus for PVD TBT1370

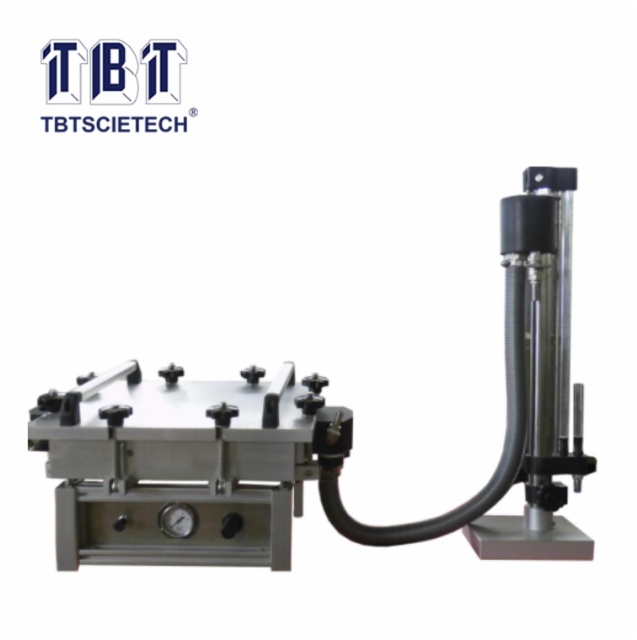

    In-plane Water Discharge Capacity Test Apparatus for PVD
    Item Code:TBT1370 Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Application:Used to determine the in-plane water discharge capacity of prefabricated vertical drains (PVD) under a specified pressure.

    Standards:JTG E50 T1143-2006,SL/T 235-26-2012

    Model No.

    TBT1370

     Structure of experimental cabin

    Open-type

    Effective length of specimen

    400mm

    Specimen width

    100mm

    Can be customized

    Lateral pressure

    350kPa

    Range of head loss

    0~400mm

    Head loss accuracy

    ±1mm
