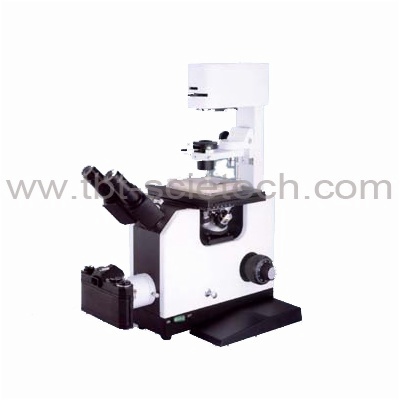

Inverted Biological Microscope (XDS-1) Manufacturer

XDS-1 Inverted Biological Microscopes

Description:

Total magnifications .....................................100X-640X
Wide-field eyepieces .............................WF10X WF16X
Reticule eyepiece ..........................10X (0.1mm/division)
LWD plan achromatic objectives
............................ LPL 10/0.25 LPL25/0.40 LPL 40/0.60
LWD plan phase contrast attachment .....LPL Ph 25/0.40
35mm photo unit with S5X photo eyepiece
Illumination
............ 6V 20W halogen lamp with adjustable brightness

Optional accessories:
1) Plan achromatic objective ........................PL 4/0.10
2) LPL Ph40/0.60 and annular diaphragm slide
3) Micrometer (0.01mm/division)
4) S6.3X, S0.65X photo eyepiece is optional for XDS-1
5) Super LWD condenser NA0.3
............................................ Working distance: 55mm

Note: LWD=Long working distance

XDS-1 Standard Outfits

Order No.	Items	Standard Outfits
	Main Body (including left & right supporting arm plate,4 piece of Allen screws & a wrench)	●
EW10	Eyepiece WF10×/￠20	●●
EW16	Eyepiece WF16×/￠14	●●
EC11	Centering Eyepiece DZ11×	●
EPr10b	Plan Article Eyepiece PF10×	●
B-OLPr10	LWD Plan Achromat Objective 10/0.25,160/1.5,W.D.=7.9mm	●
B-OLPr25	LWD Plan Achromat Objective 25/0.40,160/1.5,W.D.=5mm	●
B-OLPr40	LWD Plan Achromat Objective 40/0.60,160/1.5,W.D.=3mm	●
B-OLPnr10	LWD Plan Achromat Objective 10/0.25,160/1.5,W.D.=7.9mm	○
B-OLPnr25	LWD Plan Achromat Objective 10/0.40,160/1.5,W.D.=5mm	●
B-OLPnr40	LWD Plan Achromat Objective 40/0.60,160/1.5,W.D.=3mm	○
	35mm DF Camera With Shutter Control Line	○
33X-4	Set for Stage Insert Plate	●
9J-8	Stage Insert plate (Ⅲ)	●
9J-9	Stage Insert plate (Ⅳ)	●
33X-5	Stage Insert plate (Ⅴ)	●
CL02	Stage Clips	●●
7X.5.1	Cultural Flask (bottom thickness 1.5mm)	●●
7X.5.2	Cultural Vessel (bottom thickness 1.5mm)	●●
RP06	Annular Spot 10×	○
12X.2.3-19,20	Annular Spot 25×	●
RP07	Annular Spot 40×	○
	Halogen Tungsten Lamp 6V20W (G4)	●●●
9J.7	Photo Adaptor With Photo Eyepiece S5×	●
33X.3.2.1	Movable Condenser Insert Plate	●
TBR03	Seidentopf Binocular Head (inclined 45°)	●
	Micrometer (division 0.01mm)	○
EPHp6.3	Photo Eyepiece S6.3×	○
9J.15	Photo Eyepiece S0.65×For CCD	○
CU43-3	C-mount	○
	CCD TV & Record Attachment	○

Note：“●”in the table is standard attachment. “○”is optional accessories.

Design change:To keep pace with technological advance ,we have reserved

the right to make design modifications and changes without notice
