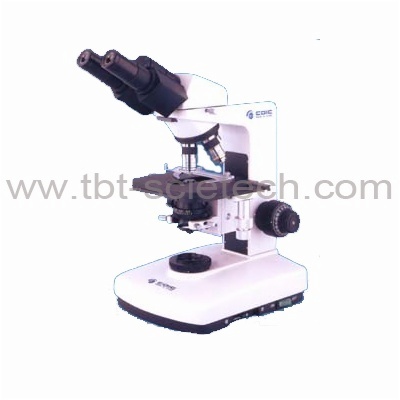

H6000 Series Biological Microscope
|
Description:
|
|
Total magnifications ............................40X-1600X
Eyepiece ...............................................WF 10X
S-plan achromatic objectives
...SP10/0.25 SP25/0.40 SP40/0.65 SP100/1.25 (Oil)
Plan achromatic objectives
.... PL10/0.25 PL25/0.40 PL40/0.65 PL100/1.25 (Oil)
Condenser ..............................................NA1.25
Base ...Revolving switch
Built in 6V 20W halogen lamp with adjustable brightness
Optional accessories
1) Eyepieces..................... WF10X(Pointer) WF16X
2) Heads ........................Seidentopf binocular head
......................................Seidentopf trinocular head
............................................Sliding binocular head
........................................... Sliding trinocular head
3) Plan achromatic objective .....................PL4/0.10
4) Phase contrast attachment
5) Dark field attachment
....................... Dark field condenser (N.A.0.83-0.91)
6) Polarizer attachment .....................Polarizer slide
....................................................... Analyzer slide
7) 35mm photo attachment
..10X reticule eyepiece S2.5X S4X S6.3X photo eyepieces
8) C-Mount and CCD camera
9) Fluorescence attachment
....................Incident fluorescence illuminator (B, G)
.........Incident fluorescence illuminator (B, G, V, UV)
..DC 100W mercury lamp house (220V 50HZ/110V 60HZ)
..AC 200W mercury lamp house (220V 50HZ)
10) Fluorescence objectives .......25/0.65 40/1 (Glyc)
...................................................... 100/1.25(Glyc)
11) Side viewing attachment
.................................. Two view field space 600mm
|
H6000 Series Biological Microscope Standard Outfits
|
Items
|
Spec.and Parameter
|
H6202
|
H6203
|
H6302
|
H6303
|
H6500
|
Order No.
|
|
Eyepiece
|
10X-18
|
●●
|
●●
|
●●
|
●●
|
●●
|
EP10a
|
|
Plan
Achromat
Objectives
|
SPlan 10/0.25
|
●
|
|
●
|
|
|
B-OSPr10
|
|
SPlan 25/0.40
|
●
|
|
●
|
|
|
B-OSPr25
|
|
SPlan 40/0.65
|
●
|
|
●
|
|
|
B-OSPr40a
|
|
SPlan 100/1.25(Oil)
|
●
|
|
●
|
|
|
B-OSPor100
|
|
Plan 10/0.25
|
|
●
|
|
●
|
●
|
B-OPr10
|
|
Plan 25/0.40
|
|
●
|
|
●
|
|
B-OPr25
|
|
Plan 40/0.65
|
|
●
|
|
●
|
|
B-OPr40
|
|
Plan 100/1.25(Oil)
|
|
●
|
|
●
|
|
B-OPor100
|
|
Eyepiece
Heads
|
Binocular Head
(30°Inclined,Seidentopf)
|
●
|
●
|
|
|
|
TBR06
|
|
Trinocular head
(30°Inclined,Seidentopf)
|
|
|
●
|
●
|
●
|
TTR02
|
|
Main Body
|
Worm and Gear
Focusing Mechanism、
Quadplex Nosepiece
|
●
|
●
|
●
|
●
|
●
|
A13
|
|
Mechanical Stage
|
Moving Range:76x50mm
Size:160x135mm
|
●
|
●
|
●
|
●
|
●
|
S30
|
|
Condenser
|
N.A. 1.25
|
●
|
|
●
|
|
|
C05
|
|
N.A. 1.25
|
|
●
|
|
●
|
●
|
C23
|
|
Condenser
Focusing
Team
|
Rack and Pinion
Focusing Mechanism
|
●
|
●
|
●
|
●
|
●
|
CA03a
|
|
Base
|
Knob Switch、6V20W Halogen Tungsten Lamp
|
●
|
●
|
●
|
●
|
●
|
B30
|
|
|
Fluorescence
Objectives
|
25/0.65
|
|
|
|
|
●
|
B-OFr25
|
|
|
40/1(Glycerin)
|
|
|
|
|
●
|
B-OFor40
|
|
|
100/1.25(Glycerin)
|
|
|
|
|
●
|
B-OFor100
|
|
|
Epi-fluorescence Mian Body (B、G)
|
|
|
|
|
●
|
FD07
|
|
|
100W Mercury Lamp House
|
|
|
|
|
●
|
LH08
|
|
|
Power Supply Case of 100W
Mercury Lamp
|
|
|
|
|
●
|
LS14
|
|
|
Glycerin
|
|
|
|
|
●
|
|
|
Immersion Oil
|
|
●
|
●
|
●
|
●
|
|
|
|
Filter
|
￠32 (Blue)
|
●
|
●
|
●
|
●
|
|
CU02-1
|
Note：“●”in the table is standard attachment. “○”is optional accessories.
Design change:To keep pace with technological advance ,we have reserved
the right to make design modifications and changes without notice.
H6000 Series Optional Accessories
|
Items
|
Spec. and.Parameter
|
Order No.
|
|
Eyepieces
|
10X-20
|
EW10
|
|
10X-18(Pointer)
|
Erg10
|
|
16X-10
|
EP16a
|
|
16X-14
|
EW16
|
|
Plan Achromat
Objectives
|
SPlan 4/0.10
|
B-OSPr4
|
|
Plan 4/0.10
|
B-OPr4
|
|
Phase
Contrast
Attachment
|
|
Plan
Positive Ph.
Objectives
|
SPlan ph10/0.25
|
B-OSPpr10
|
|
SPlan ph40/0.65
|
B-OSPpr40a
|
|
SPlan ph100/1.25(Oil)
|
B-OSPopr100
|
|
Plan ph10/0.25
|
B-OPpr10
|
|
Plan ph40/0.65
|
B-OPpr40
|
|
Plan ph100/1.25(Oil)
|
B-Opopr100
|
|
Plan
Negative Ph.
Objectives
|
SPlan ph10/0.25
|
B-OSPnr10
|
|
SPlan ph40/0.65
|
B-OSPnr40a
|
|
SPlan ph100/1.25(Oil)
|
B-OSPonr100Plan
|
|
Plan ph10/0.25
|
B-OPnr10
|
|
Plan ph40/0.65
|
B-OPnr40
|
|
Plan ph100/1.25(Oil)
|
B-OPonr100
|
|
Ph.Condenser
Only for SPlan Ph.Objective
|
C06a
|
|
Ph.Condenser
Only for Plan Ph.Objective
|
C06
|
|
Centering Eyepiece 8X
|
EC8
|
|
Main Body
|
Worm and gear Focusing
Mechanism、Quintuple Nosepiece
|
A13a
|
|
Eyepiece
Heads
|
Binocular Head (45°Inclined;Seidentopf)
|
TBR07
|
|
Trinocular Head (45°Inclined;Seidentopf)
|
TTR03
|
|
Binocular Head (30°Inclined,Sliding)
|
TB07
|
|
Trinocular Head (30°Inclined,Sliding)
|
TT06
|
|
Binocular Head (45°Inclined,Sliding)
|
TB08
|
|
Trinocular Head (45°Inclined,Sliding)
|
TT07
|
|
Dark Field
Attachment
|
Dark Field Condenser
(N.A. 0.83-0.91)
|
C07
|
|
Polarizing
Attachment
|
Polarizer Slide
|
PO01
|
|
Analyzer Slide
|
PA01
|
|
Attachment
|
10X Reticule Eyepiece
|
EPr10b
|
|
2.5X Photo Eyepiece
|
EPHn2.5
|
|
4X Photo Eyepiece
|
EPHn4
|
|
6.3X Photo Eyepiece
|
EPHn6.3
|
|
135 Photo Device
( With 4x Photo Eyepiece)
|
MP03
|
|
TV and Video
Attachment
|
C-mount Adaptor、Color or Black and White
Monitor、CCD Camera
|
TV02
|
|
Epi-fluorescence
Attachment
|
Epi-fluorescence Main Body (B.G.V.UV)
|
FD08
|
|
Power Supply Case of 200W Mercury Lamp
|
31X.3
|
|
200W Mercury Lamp House
|
31X.2.2
|
|
Side Viewing
Attachment
|
Two View Field Space 600mm
|
TB06
|
|
Epi-illumination
Attachment
|
6V20W Halogen Tungsten Lamp
(With Reflector)
|
H09
|
|
Filter
|
￠32 (Green、Amber)
|
CU02-2、3
|
|
Image Analysis and Disposal System
|
|
