Research Biological Microscope (XSZ Series ) Manufacturer

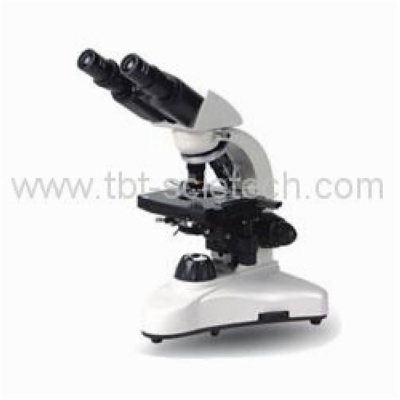

XSZ Series Model 152 Research Biological Microscope

Description:
XSZ Series Model 152 Research Biological Microscope is widely used in Biology. Histology, Pathology, Medicament, chemistry research and Clinical examination. It can also be used for education in Colleges and Schools.

Specification			Model
			XSZ-152A	XSZ-152B	XSZ-152T
Viewing head	Monocular Head.Inclined at 45°		●
	Compensation Free Binocular Head .Inclined at 30°			●
	Compensation Free Trinocular Head Inclined at 30°				●
Interpupillary Distance	55mm -75mm			●	●
Eyepiece	WF10 ×		●	●	●
Objective	Achromatic objectives:4X,10X,40X(S),100X(S) Oil		●	●	●
Stage	Double layers mechanical stage		●	●	●
	Stage size:125mmX 130mm		●	●	●
	Moving range: 75mm × 50mm		●	●	●
Condenser	Swing type N. A.1.25 Abbe condenser with iris Diaphragm & filter		●	●	●
Focusing	Coaxial coarse&fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm		●	●	●
Collector	High brightness light collector		●	●	●
Light source	Halogen bulb 6V/20W. AC85-230V		●	●	●
	Adjustable brightness
Optional Accessory	Eyepieces:	Eyepieces:WF16x,wf20x,P16x	Photo and CCD attachment
	Plan objectives:	4X,10X,20X(S),40X(S), 60X(S),100X(S)Oil
	Semi-plan objectives:	4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Mark” ● ”standard outfit. Mark:” ○ ”optional parts.
