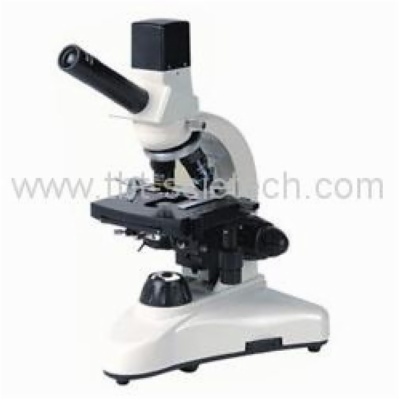

Research Biological Microscope (XSZ-152) Manufacturer

XSZ-152 Research Biological Microscope:

I .Application:

The series microscope is widely used in Biology. Histology, Pathology, Medicament, chemistry research and Clinical examination. It can also be used for education in Colleges and Schools.

II. Specification:

Specification		Model
Specification		XSZ-152A	XSZ-152B	XSZ-152T
Viewing head	Monocular Head. Inclined at 45°	●
	Compensation Free Binocular Head . Inclined at 30°		●
	Compensation Free Trinocular Head Inclined at 30°			●
Interpupillary Distance	55mm -75mm		●	●
Eyepiece	WF10 ×	●	●	●
Objective	Achromatic objectives:4X,10X,40X(S), 100X(S) Oil	●	●	●
Stage	Double layers mechanical stage	●	●	●
	Stage size:125mmX 130mm	●	●	●
	Moving range: 75mm × 50mm	●	●	●
Condenser	Swing type N. A.1.25 Abbe condenser with iris diaphragm&filter	●	●	●
Focusing	Coaxial coarse&fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm	●	●	●
Collector	High brightness light collector	●	●	●
Light source	Halogen bulb 6V/20W. AC85-230V	●	●	●
Light source	Adjustable brightness	●	●	●
Optional Accessory	Eyepieces: WF16x,WF20x,P16x 1.3、2.0、5.0Mega pixel ,CMOS electronic eyepiece Plan-Objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil Semi-plan objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil Phase Contrast Attachment Photography attachment and CCD Adapter 0.5×、0.57×、0.75×
