    Digital display Strain Controlled Direct Shear Apparatus (quadruplex) ZJ

    Digital display Strain Controlled Direct Shear Apparatus (quadruplex)
    Item Code:ZJ Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

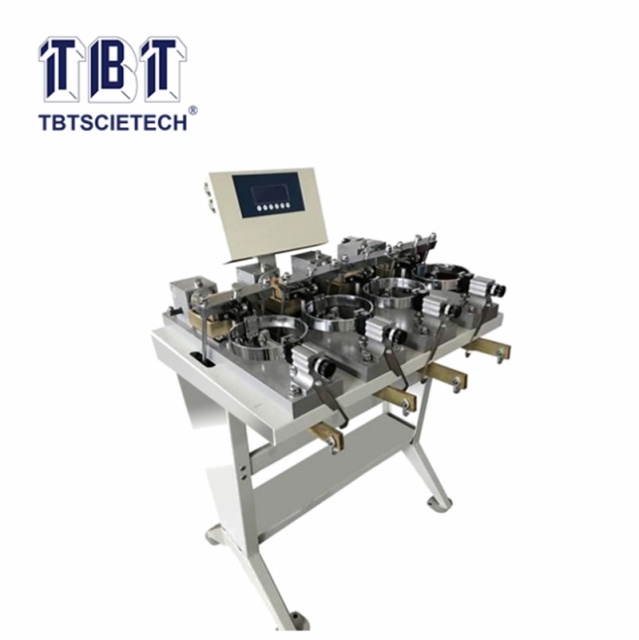

    Digital display ZJ Strain Controlled Direct Shear Apparatus (Quadruplex)
    ZJ quadruplex Direct Shear Apparatus is a kind of strain controlled direct shear apparatus used to test resisting shear strength of soil specimen, it usually adopts four specimens under the different vertical pressure and to exert horizontal force to the specimens so as to obtain shearing stress while the specimen is destroyed. According to Coulomb’s law to confirm the resisting shear strength coefficient , angle of internal friction and coagulable force of the soil.


    Vertical load: 400kPa max.
    Pressure grade: 100kPa, 200kPa, 300kPa, 400kPa
    Lever ration: 1 : 12
    Shear box: 4
    Horizontal shear force: 1.2kN
    Specimen size: 30cm2 x 2cm (H)
    Speed ratio: 2.4mm/min. 0.8mm/min. 0.1mm/min.  0.02mm/min.
    Power supply:
    220VAC 50Hz



    Any questions, please contact us.

    Email: sales@tbt-scietech.com;toni_gu@tbt-scietech.com

    Tel: 86-25-8472 1577/8472 1579/8472 1907
