Field Shear Vane Test Kit Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTVS-3M is geotechnical testing instrument that directly tests the undrained shear strength of clay by manually pressing it into the soil layer on-site.

The device has maximum testing depth of 3m, measurement range of 0~260 kPa and accuracy better than 10%.

1) A large-range torque meter measures the soil resistance under shear torsion of the vane head in the soil, thereby obtaining the shear strength of the tested soil;

2) Six extension rods, each Φ10mm in diameter and 500mm in length, connected end-to-end, can reach a maximum length of 3m;

3) Vane head: available in four sizes to accommodate testing soils with different shear strengths.

No	Cross-plate head (mm)	Measuring range(kPa)	Proportion
A(standard)	20x40	0~130	1
B	16x32	0~260	2
C	25.4x50.8	0~65	0.5
D	50.8x101.6	0~8.125	0.0625

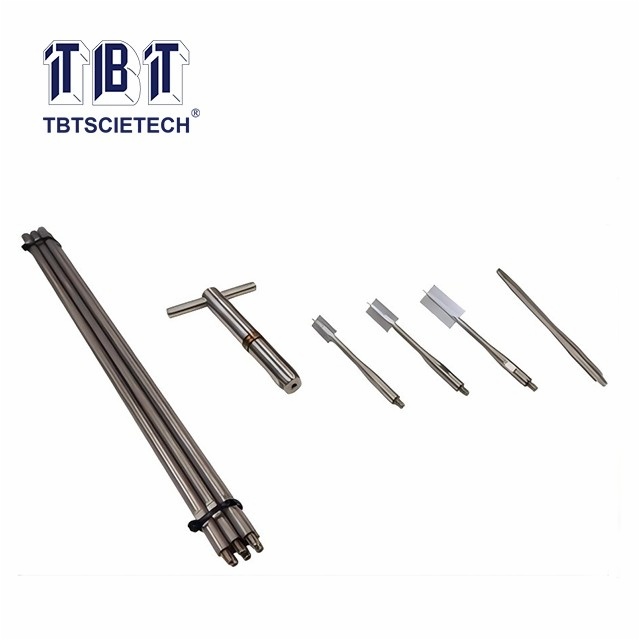

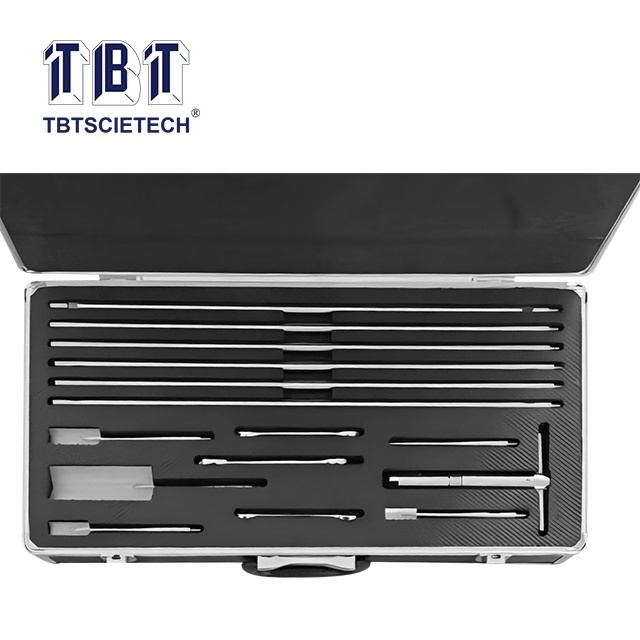

Field Shear Vane Test Kit TBTVS-3M
