Digital Direct Shear Testing Machine Manufacturer

TBTDS-5A is designed referring to ASTM D3080 & AASHTO T236 Standard Test Method for Direct Shear Test of Soils Under Consolidated Drained Conditions, BS 1377-7 Methods of test for Soils for civil engineering purposes -Part 7: Shear strength tests (total stress) and EN ISO 17892-10 Geotechnical investigation and testing - Laboratory testing of soil - Part 10: Direct shear tests.

It can be used to perform consolidation & shearing phase of a standard direct shear & residual shear test under automatic speed control. The system consists of a micro stepper motor to apply horizontal shear load to the soil specimen, at user-input shearing rate. The shear force readings are obtained from the proving ring at specified intervals of horizontal displacement shown on the touch screen display. Incorporated with limit sensors to prevent shearbox from over-travel at forward or reverse motions.

ASTM D3080, AASHTO T236, BS 1377-7, EN ISO 17892-10

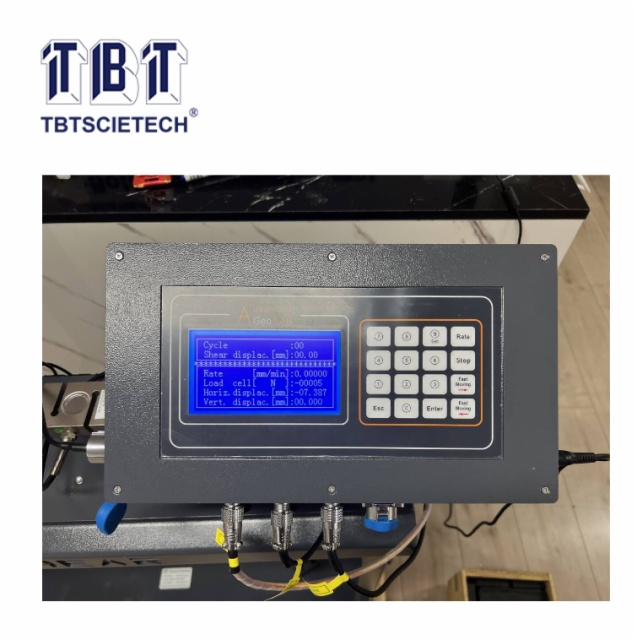

1.Control panel come with LCD and keypad for manually setting and control;

2.Large liquid crystal display and with 16 keys membrane;

3.Reciprociting shear capability and times are settable built-in 16 bit data acquisition and control.

Max. shear capacity	5kN
Adjustable shear speed	0.00001 to 9.99999mm/min
Max. shear travel	45mm
Load beam ratio	11:1, 10:1, 9:1

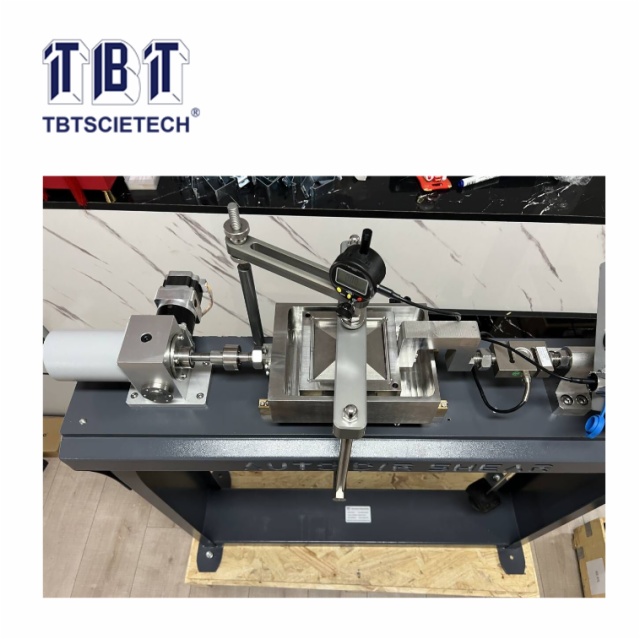

Shear box assembly	One piece 60x60mm & one piece 100x100mm
Load sensor assembly	5kN capacity, fitted with 4 pin DIN plug
Vertical displacement transducer assembly	12.7mm travel, Accuracy:0.003mm, Resolution:0.001mm, 4 pin DIN plug, Mounting pillar and bracket for shear box
Horizontal displacement transducer assembly	25.4mm travel, Accuracy: 0.003mm, Resolution: 0.001mm, 4 pin DIN plug, Mounting pillar and bracket for shear box
50kg slotted steel weight set according to standard	2x0.25kg, 1x0.5kg, 2x1kg,1x2kg, 1x5kg, 4x10kg
Size	Around 1300x400x1250mm
Weight	Around 165kg
Power supply	220V, 50/60Hz

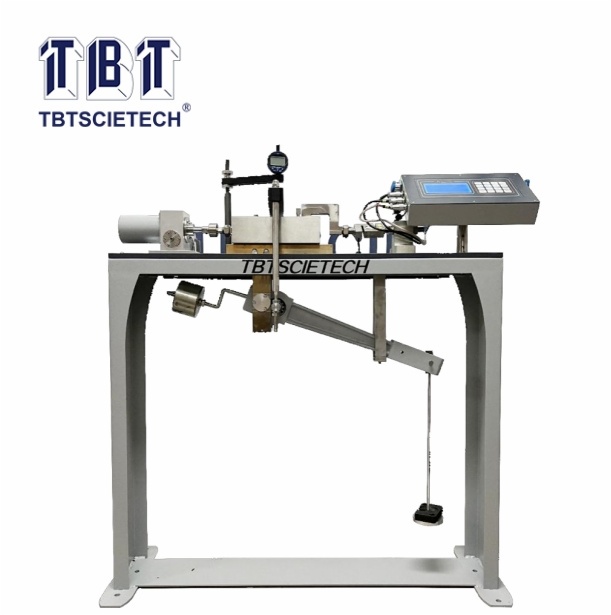

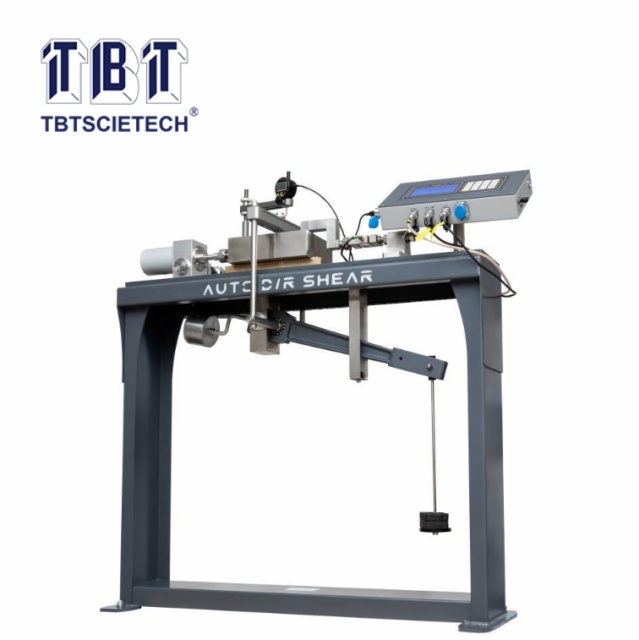

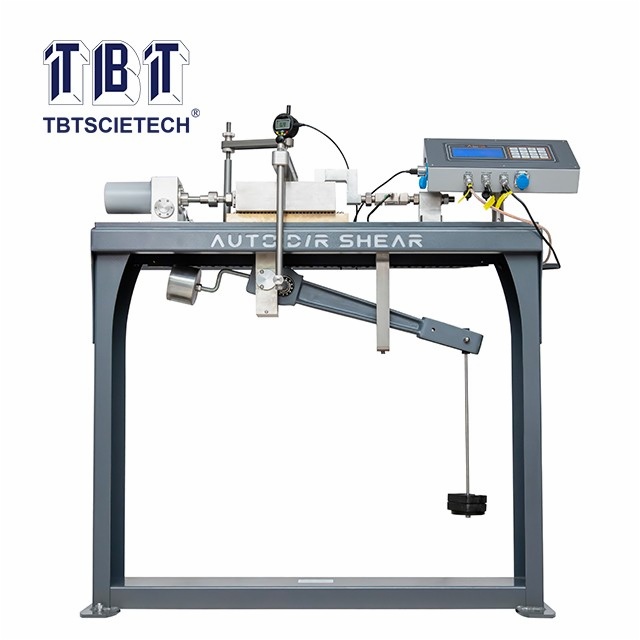

Digital Direct Shear Testing Machine TBTDS-5A
